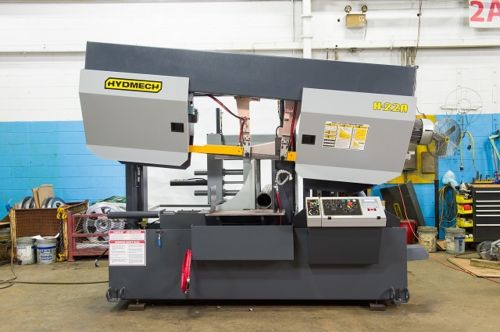

HydMech H-22A Band Saw

HydMech H-22A 22"X 22"Cap 10Hp 40-300 Sfm 2"Blade 208,240,480,575V 3Ph Auto Band Saw
Make: HydMech
Model: H-22A
Table Height: 31"(35" WCanted Head)
Max Rectangular Capacity: 22"H X 22"W
Max Round Capacity: 22"
Max Square Capacity: 22"
Max 90° Canted Head Rectangular Capacity: 20" X 22"
Max 90° Canted Head Round Capacity: 20"
Max 90° Canted Head Square Capacity: 20"
Blade Size: 2" X 22' 6"
Blade Drive: 10 Hp
Blade Speed: 40-300 Sfm
Automatic Multi-Indexing
Hydraulic Tank Capacity: 9.5 Gallons
Coolant Tank Capacity: 30 Gallons
Machine Weight: 12,500 Lbs
Machine Dimensions: 141"W X 88"L X 92"H
Machine Voltage: 208,240,480,575
3 Ph
Standard Machine Features:
One Piece Design-No Alignment Necessary
Spilt Front Vise
Cast Iron Shuttle Features Automatic Multi-Indexing Up To 34” In A Single Stroke With Automatic Kerf Compensation.
Steel Guide Arms. The Idler Side Guide Arm Is Mechanically Connected To The Front Vise Moveable Jaw For Proper Guide Arm Spacing At All Times.
Hydraulic Positive Down Feed
Blade Chamber Separates Material From Cut Part
10 HP VFD. True Direct Blade Drive – No BeltsPulleys Full Capacity, Full Stroking Hydraulic Vises
High Resolution Feed Rate Valve Allows For Constant Feed Rate When Cutting Special Alloys
Cast Iron Band Wheels
Automatic PLC Control Programmable Up To 99 Jobs With 5 In Queue.
Replaceable Blade Brush
Robust Steel Base
Automatic Chip Removal Auger
Easy Access Electrical Panel And Hydraulics
Blade Breakage Switch
Hydraulic Band Tensioning With Digital Readout
Hydraulic Carbide Guide Tensioning
Hardened, Replaceable Wear Plates
Safety Door Interlocks
Flood Coolant With Wash Down Hose
Work Light
