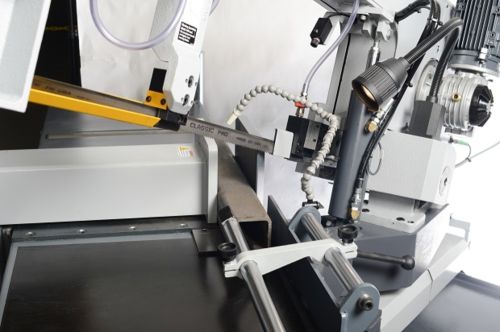

HYDMECH S-20 Band Saw

HydMech S-20 13"H X 18"W Rectangular Capacity 1" Blade 45-330 Sfm 3Hp Band Saw
Make: HydMech
Model: S-20
Table Height: 31"
Rectangular Capacity At 90°: 13” H x 18” W
Rectangular Capacity At 45°: 13” X 10 34”
Rectangular Capacity At 30°: 13” X 7 34”
Round Capacity At 90°: 13"
Round Capacity At 45°: 12”
Round Capacity At 30°: 8 12”
Blade Dimensions: 1” x 14′ 10”
Blade Drive: 3 HP VFD
Blade Speed: 45-330 SFM
Coolant Tank Capacity: 6 US Gal
Machine Volts: 208, 240, 480, Or 575 v
Max Workload: 5,000 Lbs
Machine Weight: 2,200 Lbs
Machine Dimensions: 92”W 75”L 52”H
Standard Features:
Easy Swing, Heavy Duty Cast Iron Saw Head
3 HP True Direct Blade Drive – No BeltsPulleys
36” Material In-Feed Roller Table And 19” Out Feed Table
Heavy Duty Sliding Vise Jaw
Mechanical Band Tensioning With Digital Readout
Cast Iron Band Wheels
Swing Away Control
Replaceable Blade Brush
Robust Steel Base
Easy To Read Angle Scale With Angle Locking Mechanism
Cast Iron Guide Arms. Idler Side Guide Arm Is Adjustable And Supported By Linear Rail.
Gravity Head Feed
Replaceable Carbide Guide Inserts
Safety Door Interlocks
Flood Coolant With Wash Down Hose
Laser Light
Work Light
Available Options: (At Additional Cost)
Mist Lubrication
Work Stop
Single Phase – 220 V
Idler Conveyors
The S-20 Manual Band Saw Features A Swing Head Design And Provides Exceptional Miter Cutting Capability For Light To Medium Duty Applications.
Featuring A 13″H x 18″W Capacity At 90°, 3 HP Motor, And 1″ Blade, The S-20 Is A Versatile Machine Ideal For Use In Tight Working Spaces.
