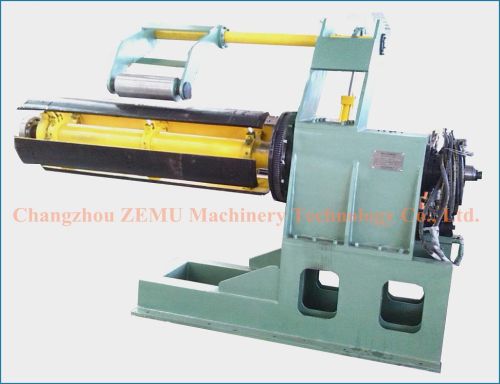

Hydraulic Automatic Decoiler Machine, Brand Name : ZEMU

We offer hydraulic automatic decoiler machine.
1) this automatic decoiler machine adopts motor to drive steel rotate, and steel belts are sent out.
2) the hydraulic driving device tension or loosen steel coil inner bore.
3) with easy structure, the machine is easy to maintain.
4) the main components of this corrugated sheet decoiler machine
a) hydraulic pump station motor
b) feeding rack mandrel
c) automatic detecting device
2. Parameters of our hydraulic automatic decoiler machine
we manufacture automatic decoiler machine at customer's specific requirements about steel coil specifications of width and maximum coil weight.
and in the following, we will give parameters of a corrugated sheet decoiler machine , with 10 tons and 1300mm width, as an example.
1) motor for hydraulic station: 4kw (380v 50hz)
2) hydraulic pressure: 16mpa
3) coil inner diameter: min 470mm max 520mm
4) coil outer diameter: max 1300mm
5) coil width: max 1300mm
6) coil weight: max 10 tons
7) dimension:2650x1200x2000(lx w x h)
8) total weight: approx 3 tons
9) frequency converter: 7.5kw(380v 50hz) speed regulation
10) inclined strutbracing structure.
