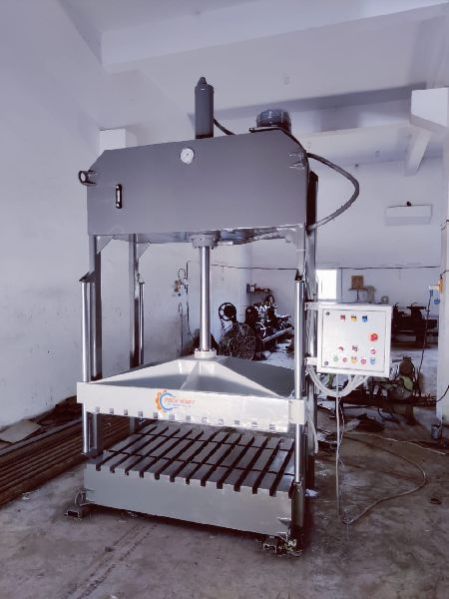

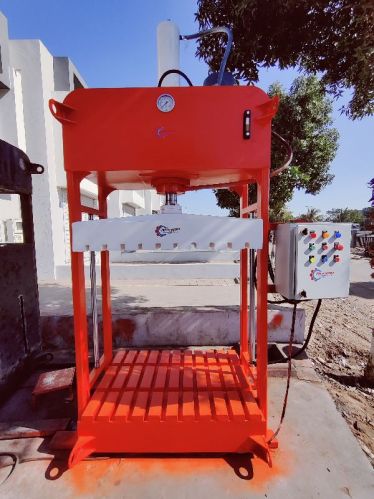

MECH HEART Hydraulic Baling Press

Listing ID #6297319

2.10 Lakh - 8.50 Lakh / Set

Get Latest Price

MOQ 1 Set
Brand NameMECH HEART
UsageIn Woven Sack Industries
Structure Made ofHeavy Duty Plates, Channels, Angles, Box Pipes
Motor CapacityFrom 5 Hp to 20 Hp
Supply Type Exporter, Supplier, Retailer, Distributor

Preferred Buyer From : All over the world

View More Details

Send Enquiry

Product Details

Brand Name MECH HEART
Usage In Woven Sack Industries
Platform Size (WIDTH) Width: 800, 1200, 1500 mm
Motor Capacity From 5 Hp to 20 Hp
Power Supply 3 Phase
Pump Type Hydraulic Vane Pump (Double)
Structure Made of Heavy Duty Plates, Channels, Angles, Box Pipes
Motor Mounting Vertical, Flange Mount 1440 RPM
Pump Capacity From 27 LPM to 250 LPM
Direction Control Valve Yuken / Rexroth
Tonnage From 10 Ton to 80 Ton
Hydraulic Cylinder From 10 Ton to 80 Ton
Hydraulic Products Made of Polyhydron
Guide Rod Hardchrome Solid Rod, 4 Nos.
Platform Size (DEPTH) Depth: 600, 800, 1000 mm

Hydraulic Systems are used in modern production plant and manufacturing Installation. By Hydraulics, We mean the generation of force and motion by using Fluids. The Hydraulic fluid represents the medium for power Transmission.

These presses are most suitable for very compact baling of HDPE, PP-Woven Sacks Bags. Compact bales of bags made to facilitate save transportation cost, time & storage space.

Salient Features:

§ Four open guide pillars + guides rod for support of moving platen resulting in perfect alignment and safety of the hydraulic seals.

§ Hydraulic Double acting single cylinder, Pipe made of ST3 material fully Honed pipe, Piston rod made of EN8 material with Hard chrome.

§ Slits on both axes provided for the perfect bale strapping.

§ The moving Platens can be stopped by means of height adjustable Limit switches on both sides, i.e. upwards & downwards.

§ Pressure relief valve is providing for overpressure safety.

§ Available in a wide range of platform sizes, height & tonnage.

§ Warranty against proper usage on all machine parts (EXCEPT ELECTRICAL ITEMS) for 1 year from the date of delivery.

Additional Information

Payment Terms L/C
Port of Dispatch ANY PORT OF INDIA
Packaging Details WOODEN PACKING
Delivery Time AS PER ORDER

Interested in this product? Ask for more details & Latest Price from seller

Send Enquiry

Product Video

Product Images

Company Details

Mech Heart Machineries Private Limited provides you with technical support for Machinery Manufacturing Industries.
Our products have been applied in the field of Woven sack industries as well as Extrusion Plants, Recycling Plant, ant Etc. Mech Heart will focus on providing quality Products which they need. At Mech Heart, we have a qualified Engineers team to manufacture machines on the basis of client requirements.
Mech Heart Consist of Design Engineers, Quality Control Technical, administrative staff members, Sales and Marketing Professionals.
Product Range
Granule Mixer
Mixer with Dryer
Hot air Dryer
Hydraulic Bale Press
Manual Printing Machine
Bobbin Cleaning Machine
Hopper Loader
Hopper Dryer
Cheese Pipe Straightener
Hydraulic Waste Bale Press

Nature of Business Manufacturer / Exporter / Service Provider / Supplier / Retailer / Distributor
Number of Employees 20 - 50
Year of Establishment 2020
