Hydraulic Brick Press,brick Machine,brick Production Line

we at deyi provide customers with complete machinery, technology and materials solutions for brick production.
the bricks made by our brick production line are aimed for industrial application and innovation in many fields, including intelligence, environmental protection, energy-saving and emission-reduction, and new materials, to name a few. mechanical, electric, and hydraulic integration automatic hydraulic press, together with large-tonnage, high speed and high reliability robot are our core equipment.
features of brick production line
1. the brick production line is cost-effective, and can be used to make a variety of bricks by replacing moulds
2. with high utilization rate of solid wastes, the brick maker produces bricks at low cost.
3. the brick production line provides high production efficiency, safe operation and reliable performance.
4. the brick making machine suits large-scale, automatic and modern production line.
technological process
as solid wastes have complicated nature, low activity and difficulty in moulding, scientific matching and optimal combination of materials are thus essential in brick production. through the two-direction pressing mechanism of hydraulic press, highly compact brick bodies with high initial strength are formed. the brick bodies are then autoclaved to obtain tobermorite crystals from silicon-calcium combination reaction. hence, the bricks made by our production line have the advantages of high strength, durability, low drying shrinkage and excellent anti-freezing property, and are qualified building products.

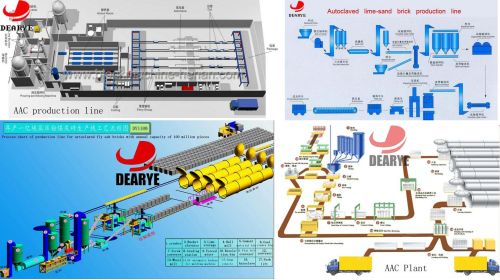

flow chart of autoclaved fly ash brick production line(annual output: 120 million pieces)
1. jaw crusher2. lime bin3. gypsum stockpile4. ball mill5. binder bin 6. automatic batching machine7. double-shaft mixer8. fly ash bin9. slaking silo10. mixer muller11. dy automatic hydraulic brick machine 12. automatic stacking machine13. autoclave14. gantry crane
technique of hydraulic press
1. the hydraulic press is designed with floating frame. it accomplishes dual-direction pressing by maintaining movement velocity differences between the piston and frame. in this way, the brick making machine avoids problems caused by non-uniform load on materials in one-direction pressing, by producing quality bricks with uniform density.
2. with graded pressing, the hydraulic press automatically exhausts for a number of times. this allows the brick machine to effectively prevent microcrack from layers and produce high density, uniform bricks.
3. forced material mixing, combined with flexible brick pressing, make the hydraulic press suit a variety of uniform materials. the simplified mechanism helps improve working efficiency as well as adobe quality and enable the machine to provide 98% qualified products
4. by adopting special computer-controlled programs and hydraulic control systems for fifferent solid wastes, the hydraulic press accomplishes high efficiency, high quality forming of materials. hence, various high addition solid wastes are applicable to the brick machine.
advantages
our brick production line is employed to make bricks by use of high addition solid wastes. the bricks manufactured by our production line have the advantages of high strength above 20mpa, low cost and reliable performance, and can be an alternative of traditional clay bricks. the brick production line meets the demands for environmental protection, energy convervation, waste utilization and land saving in the market.
service
we at deyi offer customers all-round service, which covers formulas, techniques, presses, moulds, and more. hence, you can feel secure in purchasing our brick production line.
