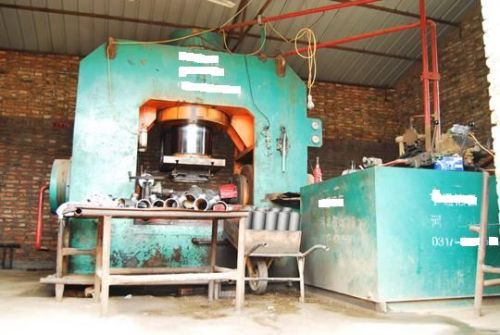

Hydraulic Carbon Steel Tee Cold Forming Machine

₹ 27.15 Lakh / 6000000 6000000 Set

MOQ1 Set(s)
Brand NameFengliyuan
fast finishedfor thick wall
hydraulic power modecold forming
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

We are offering hydraulic carbon steel tee cold forming machine. The main technical parameters of the machine 1. Cylinders : a.the upside cylinder(*1): inner diameter 340mm with a trip 400mm,....

Company Information

Yanshan Fengliyuan Pipe Fittings Equipment Manufacture Co.,Ltd

Member Since 12 Years
Nature of Business Manufacturer
Year of Establishment 2000

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

We are offering hydraulic carbon steel tee cold forming machine.
The main technical parameters of the machine
1. Cylinders :
a.the upside cylinder(*1): inner diameter 340mm with a trip 400mm, nominal pressure:28mpa
b.the side-cylinder (*1):inner diameter 320mm with a trip 150mm ,nominal pressure:28mpa
c.the ejection cylinder(*1):inner diameter 80mm with a trip 200mm , nominal pressure:28mpa
the thrust of the upside cylinder:250tons
the thrust of the side-cylinder:220tons
the thrust of the upside cylinder:10tons
2 pump station：63scy-plunger pump :1 set 22kw motor: 1set electric valves manipulations,
water flooding pump:1 set
3 main engine frame: welded of 35 mm medium plate.
