Hydraulic Coal Face Drilling Machine

₹ 1 Lakh - ₹ 5 Lakh / Piece

MOQ1 piece
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Radiant Hydraulic Face Drilling Machines (with Dust Suppression System) have been developed with an idea to achieve Wet Drilling on Coal Faces to avoid fatigue from coal dust to the operators. It....

Company Information

Member Since 19 Years
Nature of Business Retailer
GST No. 19AADCR0175M1Z2

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

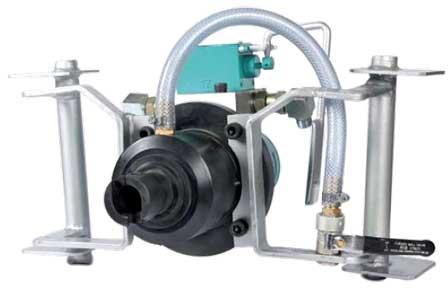

Radiant Hydraulic Face Drilling Machines (with Dust Suppression System) have been developed with an idea to achieve Wet Drilling on Coal Faces to avoid fatigue from coal dust to the operators. It is faster than any other conventional Drilling Machines & is also suitable for Drifting application in Sand Stone with compressive strength up to 600 kg/cm2 & Bolting purposes as well where angular/horizontal Drilling is required.
Features

Low noise
silent operation
Easy maintenance & lowest service cost
Portable, light in weight, very easy to handle
No electric connection required to be taken up to the face
Water injection system helps in flushing cuttings, dust
suppression & faster drilling
Unique drive head design eliminates thrust load being
transferred directly to the motor
Can be used in various applications like Face Drilling
Drifting, Angular Drilling etc

Specifications

Model	RMTL-HFD-1800
Operating Pressure (bar)	70 to 100
Hydraulic Flow (Lpm)	32
Rotation Speed (rpm)	400 to 600
Chuck Option (mm)	22 Hex / Spiral
Drilling Dia (mm)	27 to 43
Water Flow (Lpm)	55
Medium	DGMS Recommended Hydraulic Oil
Noise Level dB(A)	Below 70
Approx. Weight (Kgs.)	12 to 14
