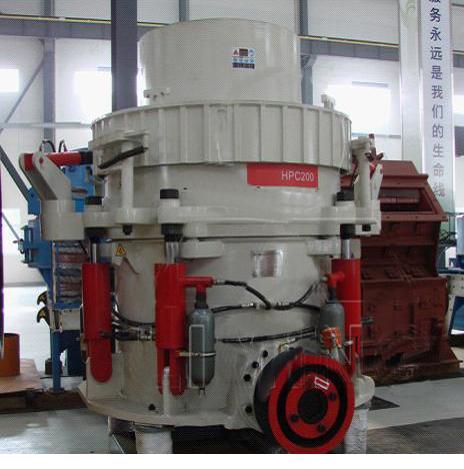

Hydraulic Cone Crusher, Power : 160 (kw)

We are offering hydraulic cone crusher.
1.full automatic hydraulic system
2.low operation cost
3.convenient to adjustment
1. A brief introduction of hydraulic cone crusher
hp series of highly efficient hydraulic cone crusher is a world-level cone crusher introduced with the up-to-the-minute technology of germany. The cone crusher not only improves the production capacity and crushing efficiency, but also widens applying area, hardness range of materials from limestone to basalt. It has a great crushing performance in the work of medium-size crushing, fine crushing and super fine crushing. The crusher is the improved type of spring cone crusher and can be used to replace ordinary hydraulic cone crusher in the field of mining and construction. It is the most ideal equipment for large stone crushing factory and mining industry.
2. Working principle of hydraulic cone crusher manufacturer:
during the working process, the eccentric shaft will force the motor to make a swing movement at a fixed point by the conveyor, counter shaft, couplings, and the cone parts, which can make the crushing cavity close or leave the rolling shirakable now and then.and the ores will be crushed by shock, crack and warp. And hp cone crushers spring secure system is a kind of overloaded protection equipment, which can let the non-metal materials pass the crushing cavity with no harm to the machine. Adoption of the glycerol or water seal forms can seprate the stone powder and lubricating oil, which ensure the reliable work.the spring secure system will take effects and the discharge opening will become largest so that the foreign bodies can be discharged from the discharge opening when the non-crushed materials can not pass the crushing cavity or the overloaded phenomenon has happened on the machine. If the foreign bodies get stuck in the cavity, we can continue to increase the discharge opening and let them pass the cavity. Due to the spring, the discharge opening wil recover and go back to the normal work.
3. Features of hydraulic cone crusher manufacturer:
1. Large reduction ratio, high production efficiency;
2. Less consumption of wearing parts, low operating costs;
3. Pyramid broken, perfect of product shape;
4. Hydraulic protection and hydraulic pressure cavity clear high degree of automation to reduce downtime;
5. Rare lubrication, reliable and advanced to improve life;
6. Reliable hydraulic system provides safe and effective overload protection;
7. Spare parts can be changed easily, easy maintenance and operation.
pay attention to the following factors which can influence the performance of hydraulic cone crusher:
1. Choose right crushing cavity according to the materials to be crushed;
2. The feeding size should be right;
3. Materials are distributed equally around the crushing cavity;
4. Automatically control system is applied;
5. Discharge opening of cone crusher works normally;
6. The model of belt conveyor depends on the max. Processing ability of the crusher;
7. Choose the right screen model for advance screening and closed screening.
technical data of hydraulic cone crusher manufacturer
type
cavity (coarse/fine)
min. Discharge size (mm)
feed size (mm)
capacity (t/h)
power (kw)
weight (t)
movable cone diameter (mm)
hpc-160
c
13
150
120-240
160
13
950
f
6
76
55-180
hpc-220
c
13
225
150-430
220
18
1160
f
6
86
90-260
hpc-315
c
13
290
190-610
315
26
1400
f
6
100
108-320
hpc-400
c
13
320
230-700
400
33
1500
we(shenzhen yuhan electro-mechanic co.,ltd)are pleased to introduce you ourselves as one of the leading and well established/manufacturing and supplying of high quality products as below main items:
stone production line:
including:
jaw crusher
impact crusher
cone crusher
hammer crusher
vibrating screen etc
sand making production line:
including:
jaw crusher
sand making machine (vsi crusher)
ball mill
cone crusher
hammer crusher
sand washing machine
vibrating screen etc
we have a perfect after-sales service system and team with professional after-sales service has provided customers with prompt and thorough service. Our price are most competitive and reasonable, all order will be supplied within the stipulated period. Awaiting your first inquiry order.
