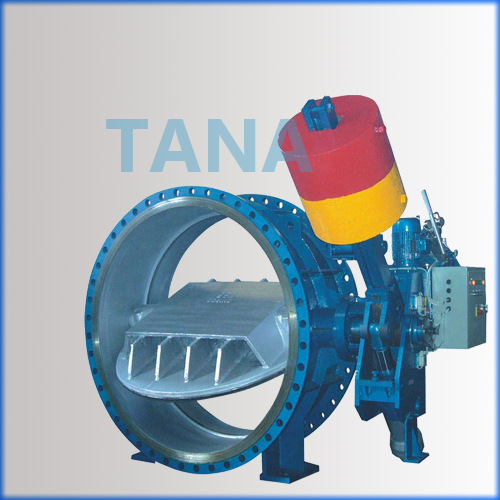

Carbon steel Hydraulic Control Butterfly Valve

We are offering hydraulic control butterfly valve for pumping station, quick details-:
standard or nonstandard:standard
structure:butterfly
pressure:medium pressure
power:hydraulic
material:stainless steel
temperature of media:medium temperature
media:gas
place of origin:zhejiang, china (mainland)
brand name:tana or oem
packaging & delivery
packaging details: plywood case
delivery detail: as soon as possible
specifications
hydraulic control butterfly valve for pumping stationsize :2"~80"pressure: class150-300lbmaterial: cast iron, ductile iro
hydraulic control butterfly valve for pumping station
design features
concentric structure, bi-directional seal
non-peeling seat-to-body structure
spherical design for plate and seats
non-pin connection
low valve operating torque
flow curve tending to straight line
technical specification
size 2"-48" or dn50-dn1200
pressure: class150lb-300lb or pn16-pn25
material: cast iron, ductile iron
design & manufacture std.: api609,mss sp-67,mss sp-68,din3354
end connection std.: api609, asme b16.5,asme b16.47 , en1092
test standard:api598,en12266.1
structure type: center line pattern, double eccentric pattern
operated way:hand wheel,worm gear,pneumatic,electric actuator
tana will provide you satisfying price, quality and service.
welcome to visit or email us your inquiry.
provide co,fa,fb,fe,ff,fn,fp,fx etc. Certificates as per customer’s requirement.
