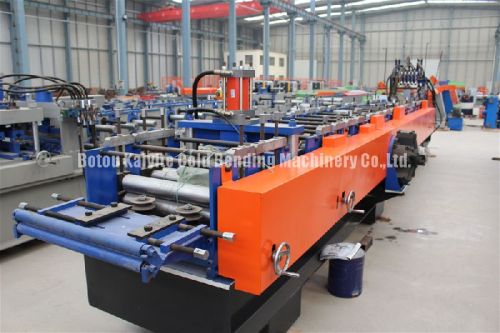

Hydraulic Cutting Steel CZ Purlin Making Machine

Hydraulic Cutting Steel CZ Purlin Making MachineOur hydraulic cutting steel cz purlin making machine's warranty period is 12 months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need to pay the express cost yourself .if exceeding warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment . Decoiling the sheet→Sheet guiding→Roll forming→Measure length→Cutting the panel→Panels to product stand A. full automatic B . lower cost  C. high efficiency D. reliable working  E. low energy consumption Technical parameters: Material thickness: 1.5 - 3 mm         Size of purlin : 80-300mm Power: Voltage : 380V3PH50HZ Main Motor : 7.5 KW Hydraulic Motor : 5.5 KW Hydraulic Pressure : 10-12MPa Main machine Flattening rollers : 7 rollers Main forming station : 13 steps Forming Shaft : diameter 85 mm, 45# steel thermal refining Roller Material : GCR15 bearing steel quenching HRC58-60° Main machine body : 350# H steel welded Transmission : Chain and Sprocket, chain size 2 inch Wall plate : 20 mm thickness Blade material : Cr12 mould steel with quenched treatment60-62° Punch Mould (if needed) : Cr12 quenched Forming Speed : 8-15mmin for standard solution Hydraulic cutting system : fully automatic .  Material of blades: Cr12, quenching treatment.
