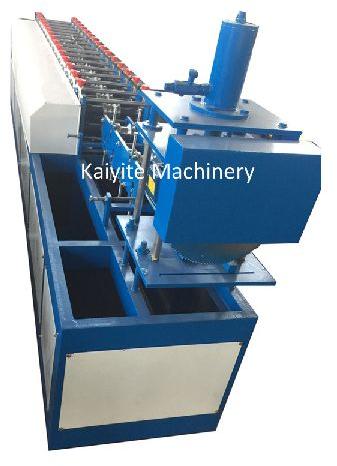

Hydraulic Cutting Steel Roller Shutter Door Roll Forming Machine

Hydraulic Cutting Steel Roller Shutter Door Roll Forming Machine The hydraulic cutting steel roller shutter door roll forming machine is very famous . the shutter door slats have the advantage of light weight , easy to install  and low cost . Different countries have different profile . We have experienced engineers and workers so our company has the ability to design the shutter door machine according to the clients profile . Decoiling the sheet→Sheet guiding→Roll forming→Measure length→Cutting the panel→Panels to product stand 1. Roll shutter door forming machine can prevent rainwater infiltrated2. Fire resistance rolling shutter door also have function of fireproof3. High efficiency, energy saving, can be used continuously4. Roll shutter door forming machine use PLC and inverter controller5. The straightening device of this roller shutter door roll forming machine can be adjusted to decrease phenomenon caused in the process of roll forming. Technical parameters: Processing material: colored steel plate, galvanized plate, or aluminium plate Material thickness :  0.3---0.8mm Material width : 100 - 160 mm(according to the profile) Diameter of shaft : 75 mm Roller Station : 10 - 15 steps Sidewall Thickness : 14 mm Main frame :400 H steel Motor Power : 4 + 3 kw Forming speed : 10 -  20mmin Forming rollers Specification: 45# steel, CNC Lathes, heat treated
