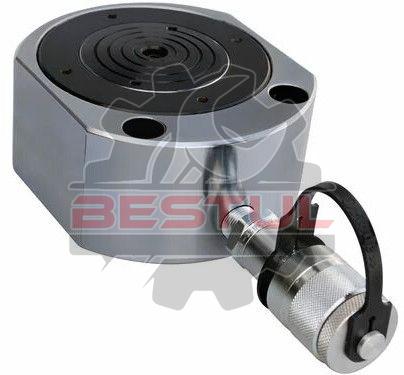

Alloy Steel Hydraulic Cylinder Flat Jack Plain RAM

HYDRAULIC CYLINDER FLAT JACK PLAIN RAM is a type of hydraulic jack designed for use in situations where space is limited but where lifting power is still required. Unlike pancake jacks, which often have a threaded ram for fine adjustments, a flat jack with a plain ram typically provides lifting without incremental adjustment.

Here’s a comprehensive look at the specifications and features of a hydraulic cylinder flat jack with a plain ram:

Hydraulic Cylinder Flat Jack with Plain Ram Specifications1. General Specifications

• Model: [Specific Model Name]
• Manufacturer: [Manufacturer Name]
• Type: Hydraulic Flat Jack with Plain Ram

2. Lifting Capacity

• Maximum Load Capacity:
  • Range: Typically from 5 tons (10,000 lbs) to 20 tons (40,000 lbs), but higher capacities are available depending on the model.
  • Units: Tons or pounds (lbs).

3. Dimensions

• Minimum Height:
  • Range: 3 inches (76 mm) to 6 inches (152 mm). The minimum height indicates how low the jack can be positioned.
• Maximum Height:
  • Range: 8 inches (203 mm) to 15 inches (381 mm). The maximum height is the total lift the jack can provide.
• Diameter of Base:
  • Range: 6 inches (152 mm) to 12 inches (305 mm). The base diameter provides stability during lifting.

4. Weight

• Net Weight:
  • Range: 40 lbs (18 kg) to 70 lbs (32 kg), depending on the lifting capacity and size.
• Shipping Weight: Slightly higher due to packaging.

5. Construction

• Material:
  • Primary Material: High-strength steel or aluminum alloy for durability and load-bearing capacity.
• Finish:
  • Type: Powder-coated or corrosion-resistant finish to enhance durability and prevent rust.

6. Hydraulic System

• Hydraulic Fluid Capacity:
  • Range: 0.4 gallons (1.5 liters) to 0.6 gallons (2.3 liters).
• Pump Mechanism:
  • Type: Manual hand pump or optional powered pump (electric or pneumatic).
• Hydraulic Fluid Type:
  • Common Fluids: Mineral oils or other hydraulic fluids as specified by the manufacturer.

7. Plain Ram Features

• Ram Type:
  • Design: Plain ram without threads. The ram moves up and down based on hydraulic pressure but does not offer fine adjustment.
• Material:
  • Construction: Made from hardened steel or alloy for strength and wear resistance.

8. Safety Features

• Relief Valve:
  • Purpose: Prevents overloading by releasing excess pressure.
• Safety Lock:
  • Feature: Some models include a safety lock to hold the jack in place once the desired height is reached.

9. Handle and Operation

• Handle Length:
  • Range: 24 inches (610 mm) to 30 inches (762 mm). Provides leverage for easier operation.
• Material:
  • Construction: Steel or reinforced composite for durability.
