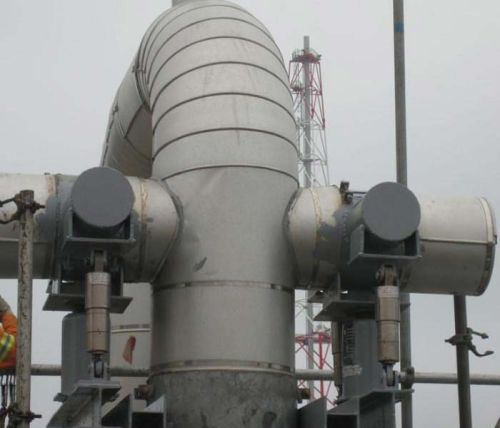

Hydraulic Damper

Our company is an eminent Manufacturer and Supplier of Hydraulic Damper from Jinan, China. Our Hydraulic Damper is proficient in preventing damage to pipelines and equipment due to earthquake or any other shock impact. Customers can get their hands on high end Hydraulic Damper for Nuclear Chemical Pipelines Shaker at affordable rates.
Highlights :

• Hydraulic damper is a speed responsive damping device, which by means of special structures valve control cylinder piston moves to curb piping or equipment cyclic loading and shock loads on
• Mainly used to prevent damage to piping or equipment due to the earthquake, water hammer, steam hammer, wind loads, the exhaust valve and other impact loads caused

Technical advantages :

• You can change according to user requirements latching speed and the rear latch speed to meet a variety of needs
• Simple structure, compact, easy to spatial arrangement
• The closed structure, sealing, stable and reliable operation
• Within the scope of the damper function, no resonance; small frictional heat displacement conditions
• Excellent dynamic performance, a good anti-overload
• Use both ends of the damper bearing joints, allowing the maximum swing angle of ± 5 °
• Stable, flame-resistant, long-life special hydraulic oil and good compatibility with seal materials
• Can work continuously at temperatures of 93o, short-time working temperature up to 148o

When the hydraulic damper ordering, specify the following items :

• User Name;

• Hydraulic damper type mark;
• The size and direction of the load;
• Cold, size and direction of thermal displacement;
• Stroke and actual work schedule;
• Installation space distance;
• Pipeline pipe diameter and temperature;
• Ambient temperature;
