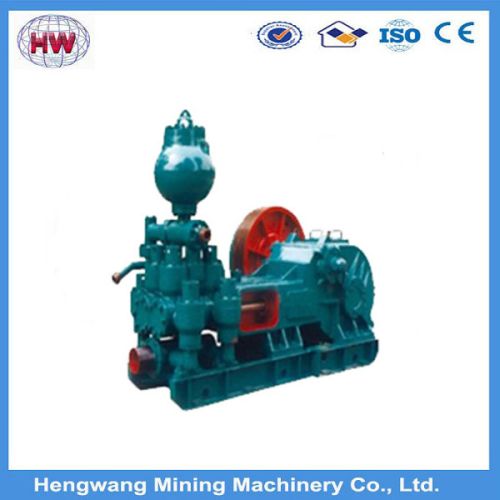

Hydraulic Diesel Slurry Pump

We offer hydraulic diesel slurry pump.
The pump is horizontal two-cylinder double-acting piston pump. Mainly used in geological, water, shallow oil and freeze construction supply flushing fluid in drilling.medium can be mud, clear water, also can be as above’s infusion pump.
product model tbw-12007b tbw-10008b tbw-8809 tbw-80010
nominal flow rate（lmin） 1200 1000 880 800
nominal pressure（mpa） 7 8 9 10
slurry pipe inner absorption 203 203 203 203
slurry pipe bore 75 75 75 75
piston stroke（mm） 270 270 270 270
piston diameter（mm） 160 150 140 130
matchin power y355m2-6type185kw motor         or g128zln2-sm·b type 206kw diesel engine
narrow v specifications gb11544-89  spb7100-9 piece
overall dimensions   （l*w*h） 3045*1440*2420（mm）do not contain power.
Net weight 7200kg do not contain power.
