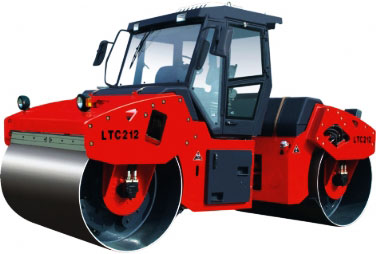

Hydraulic Double Drum Vibratory Roller

Supply TypeManufacturer, Supplier, Retailer
Preferred Buyer Location All over the world

The Hydraulic Double Drum Vibratory Roller is used for highways, roads, parks, and industrial grounds for compaction of sand gravel mixtures, road bituminous course, and RCC materials. The company....

View More Details

Send Enquiry

Company Information

Rajput Multi Trade

Saki Vihar, Mumbai, Maharashtra

View Number

Member Since 14 Years
Nature of Business Retailer
Year of Establishment 2007

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

The Hydraulic Double Drum Vibratory Roller is used for highways, roads, parks, and industrial grounds for compaction of sand gravel mixtures, road bituminous course, and RCC materials. The company has gained specialization in offering the best Hydraulic Double Drum Vibratory Roller, which is acquired from the known sources. Our Hydraulic Double Drum Vibratory Roller is provided at the most competitive prices. Details

Full hydraulic two wheel drive and vibration
Double frequency double vibration system
Hydrostatic center articulated steering, patented crab mechanism
Cabin with air conditioner, comfortable and spacious, the flexible steering seat facilitates the operation
The driver's cabin can be turned on one side as a whole, to facilitate maintenance
Fork-type frame, good hold-down property

Technical Parameters

Model	Unit	LTC214	LTC212	LTC210	LTC208
Operating massÂ	kg	14000	12000	10000	8000
Front axle loadÂ	kg	7000	6000	5000	4000
Rear axle loadÂ	kg	7000	6000	5000	4000
Stactic linear loadÂ	N/cm	333	286	238	231
Form of frameÂ	-	fork-type	fork-type	fork-type	fork-type
Crabwise movement distanceÂ	mm	Â±170	Â±170	Â±170	Â±170
Water tank capacityÂ	L	2x600	2x600	2x400	2x400
Fuel tank capacityÂ	L	154	154	80	80
Hydraulic tank capacityÂ	L	65	65	65	65
Vibration amplitude	mm	ã��	ã��	ã��	ã��
High amplÂ	-	0.8	0.8	0.67	0.67
Low amplÂ	-	0.4	0.4	0.34	0.34
Vibration frequency	hz	ã��	ã��	ã��	ã��
High amplÂ	-	40	40	45	45
Low amplÂ	-	46	46	50	50
Centrifugal forceÂ	kN	ã��	ã��	ã��	ã��
High amplÂ	-	160x2	160x2	90x2	90x2
Low amplÂ	-	90x2	90x2	69x2	69x2
Travel speed	km/h	0-12	0-12	0-11.1	0-11.1
Turning radiusÂ	mm	7000	7000	6000	6000
Grade abilityÂ	%	40	40	40	40
Steering angleÂ	-	Â±35	Â±35	Â±35	Â±35
Drum diameterÂ	mm	1350	1350	1150	1150
Drum width	mm	2100	2100	1730	1730
Drum rim thicknessÂ	mm	20	20	16	16
Transverse swing angle of the vibrating wheelÂ	-	Â±8	Â±8	Â±8	Â±8
Type of water sprayÂ	-	pressure	pressure	pressure	pressure
Wheel baseÂ	mm	3717	3717	3217	3217
Overall length	mm	5150	5150	4558	4558
Overall widthÂ	mm	2350	2350	1840	1840
Overall hieghtÂ	mm	3300	3300	2674	2674
Ground clearanceÂ	mm	324	324	324	324
Diesel modelÂ	-	6BT5.9	6BT5.9	4BT3.9	4BT3.9
Diesel powerÂ	kW	110	110	75	75
Diesel speed	r/min	2300	2300	2400	2400
