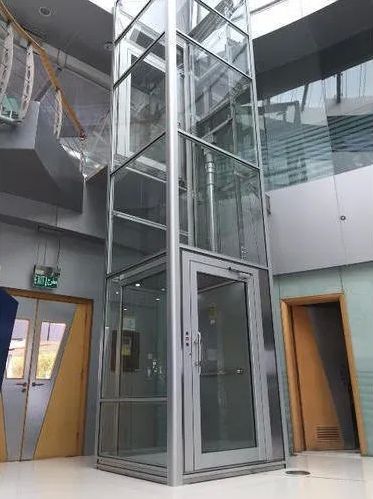

Manual Hydraulic Elevator, Color : Grey for Complex

An eco-friendly holeless design completely eliminates the below grade jackhole, which makes construction less costly and far less complex. All the same time, precision engineering offers you the smooth, reliable performance you expect from a sunrise hydraulic elevator system.

Exceptional performance, with the innovative holeless hydraulic elevator, you have a smarter, more efficient solution for a wide range of low-rise applications, including office buildings, apartments, condominiums, retail locations, hotels, hospital and more. Best of all, the broad choice of configurations, finishes and options lets you take advantage of this efficient holeless solution with almost any décor, style or specialized site requirement.

Less complex, more efficient

• Eco-friendly holeless design
• Precision engineering for quiet, smooth, reliable performance
• Simpler site preparation, fewer building interfaces, easier installation
• Jamb-mounted fixtures to reduce installation time
• versatile style
• All designs, clearances, construction, workmanship and materials are compliant with the latest applicable ASME A17 and CSA B44 elevator and escalator codes and standards NFPA 70 National Electric Code, ICC International Building Code. ICC/ANSI A117.1, and Federal ADA/ABA accessibility standards and guidelines, except as modified by the specific local code and regulations where designs, clearances, construction, workmanship and materials comply with those specific local codes and regulations. Versatile, flexible, adaptable the unique design of the Hydraulic Elevators makes it your best choice wherever the situation demands fast, efficient installation, attractive styling, and day-in day out reliability.

Wide application range:

• Single or dual jack applications - 2100lb., 2500lb., 3000lb.. 3500lb,. and 4000lb. Capacity for general purpose passenger use.
• 4000lb,. 4500lb,. and 5000lb,. Capacity for hospital/service use.
• Two to Six stop configurations, eight openings.
• One to four car systems.
• Single and two speed side opening doors and single speed center opening doors depending on the capacity selected.
• Front and rear Opening configurations available on all capacities.
• Up to 50 ft. of travel (with additional pit and/or overhead): Contact your local Schindler representative for specific details
• Conventional borehole design for higher rises capacities available: consult your local Schindler representative.
