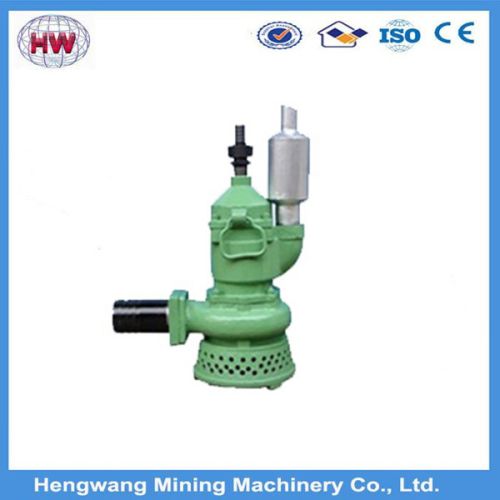

We offer FQW25-40K mine pneumatic submersible pump, suitable for methane or coal dust explosion danger spots domestic sewage, can be widely used in underground mines, coal powder, silt dirt solid particle transport in groundwater operation.
Model Rate d flowQ Rated head
H Rated wind pressureP Rated air consumption Q Noise Maximum flowm³h Max particles water hose diameter Enter hose gas bore Weight Boundary dimensionmm
m³h m MPa m³h dB mm mm mm kg L×W×H
FQW25-40K 25 40 0.55 260 90 35 8 38 25 31 350×200×550
FQW25-50K 25 50 0.55 260 90 35 8 38 25 31 350×200×550
FQW20-60K 20 60 0.55 260 90 35 8 38 25 31 350×200×550
FQW20-70K 20 70 0.55 260 90 35 8 38 25 31 350×200×550
FQW15-35K 15 35 0.55 140 90 30 6 38 25 13 400×260×430
FQW15-40K 15 40 0.55 140 90 30 6 38 25 13 400×260×430
FQW15-70K 15 70 0.55 260 90 35 8 38 25 31 350×200×550
FQW15-90K 15 90 0.55 260 90 35 8 38 25 31 350×200×550
