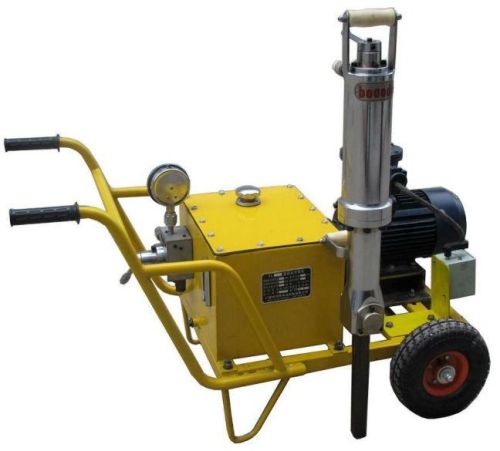

Hydraulic Fracturing Rock Stone Concrete Splitter Machine

Hydraulic fracturing rock splitting machine is small volume,small weight,powerful,no vibration,no noise,no dust at work,at same time,high work efficiency and the effect is remarkable,such as special.concrete stone splitter machine and removal equipment for the traditional method can not be used or diffcult to use the occasion,such as in large euipment can't enter  into the construction site,in the surrounding enviroment on the vibration and noise and dust under the consition of large limition,the products can reach its irreplaceable effect.hydraulic stone rock splitter series products can rapidly dividing in 8seconds. Rock splitter machine parameter Rock spliter gun Model HW80-250 HW80-350 HW80-450 HW90-250 HW90-350 HW90-450 Piston diameter 80mm 80mm 80mm 90mm 90mm 90mm Drilling diameter Φ42mm Φ45mm Φ50mm Φ42mm Φ45mm Φ50mm Drilling depth ≧500mm ≧550mm ≧600mm ≧500mm ≧550mm ≧600mm Cheese block length  250mm 350mm 450mm 250mm 350mm 450mm Crack width 10~40mm Splitting time 5~15s Theory of separatist force 600T 600T 600T 800T 800T 800T The actul split force 480T Hydraulic rock splitter pump station Engine Electric engine Diesel engine Capacity of tank 15L 40L 88L 45L 65L 90L Motor power 1.5KW 4KW 7.5KW 4HP 7HP 7.5HP Working pressure(Mpa) 55-60 Working flow(L/min) 2-13
