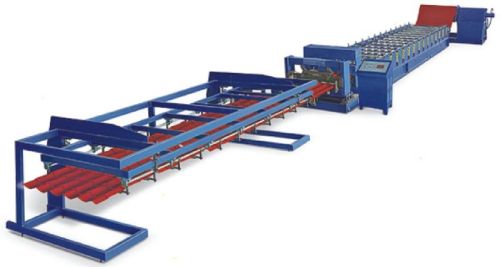

    HYDRAULIC FULLY AUTOMATIC FORMING MACHINE

    HYDRAULIC FULLY AUTOMATIC FORMING MACHINE

    Get Latest Price
    • Effective width after forming1000mm
    • Wall plate thickness12mm
    • Thickness of the steel0.25-0.8 mm
    • Material of shaft45 steel adjustable treatment. Outer diameter 70mm
    • Supply TypeManufacturer, Exporter, Supplier, Retailer
    • Preferred Buyer Location All over the world
    View More Details
    Send Enquiry

    Company Information

    Ganga Steel
    location Varachha, Surat, Gujarat
    View Number
    • calendar Member Since 14 Years
    • building Nature of Business Retailer
    • Year of Establishment 2005

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    View Company Details

    • Product Details

    • Company Details

    no_img_icon

    • Wall plate thickness12mm
    • The forming speed8000mm/min
    • Thickness of the steel0.25-0.8 mm
    • Effective width after forming1000mm
    • Width of the steel1250mm
    • Number of forming steps13 steps
    • Weight of the machine4000kg
    • Main stand250 H steel
    • The plating chromium’s thickness on the surface of rollers0.05mm
    • Material of shaft45 steel adjustable treatment. Outer diameter 70mm
    • Material of rollers45 steel, plating hard chrome on the surface, rigidity HR55°-57°
    • Dimension of the machine7000mm×1300mm×1200mm
    • Main motor power3 kw
    • Chains1inch

    The Chart of Process flow of

    Hydraulic Fully Automatic Forming Machine


    Decoiling, feeding, pressing and forming the shape, measure the length, cutting, receiving the plates
    The

    Hydraulic Fully Automatic Forming Machine

     includes
    Manual decoiler, Main

    forming machine

    , Hydraulic cutter,

    forming machine
