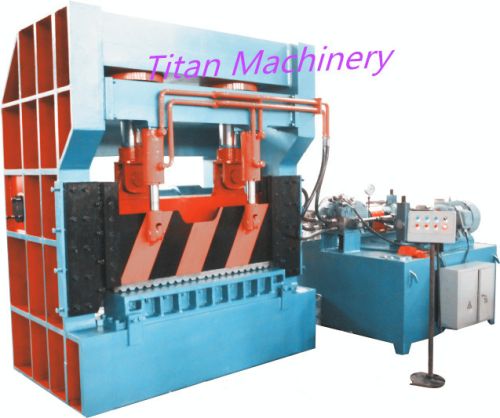

Hydraulic Guillotine Shearing Machine

We are offering hydraulic gantry shear.
Specifications
applications:
applicable in recycling companies, automobile dismantling plants, smelting &casting industry to cold-shear section steel and metallic structural parts into acceptable furnace charges.

hc42 series of square sheet shear are mainly applied to cut sheet metal into different sizes. These machines can substitute flame cutting. Cost of production is reduced.
Technical specifications:
type nominal force(kn) blade length(mm) shearing frequency
(timemin) max blade opening
(mm) max shearing palte size (mm) power
(kw)
hc42-1200 1200 600800 7-15 120 20x600 15
1200 20x1200
hc42-1600 1600 600800 25x600 18.5
1200 25x1200
hc42-2000 2000 600800 25x500 22
1200 25x1200
hc42-2500 2500 600800 30x500 30
1600 30x1600
hc42-3150 3150 800 35x800 37
hc42-5000 5000 800 40x800 44
rmk:
1.increase the blade opening size and reduce the shearing time;
2.when the tensile strength of the scrap more then 450mpa, the scrap is not  allowed to shear.
