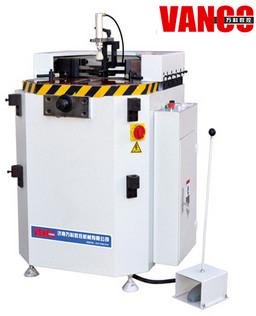

Hydraulic Heavy Synchronous Crimping Machine For Aluminum Window and Door

We offer Hydraulic Heavy Synchronous Crimping Machine for Aluminum Window and Door.
Hydraulic Heavy Synchronous Crimping Machine for Aluminum Window and Door LMB-120B
Function:
Used for aluminum frame and sash corner crimping, especially for the high quality profile, such as thermal break profile.
Features:
1. Hydraulic system driving, ensure a stable working.
2. Synchronous feeding of the level (left and right side) pushing knives by link with one hydraulic cylinder driving, which avoid the corner deform, enhance the corner connection efficiently.
3. Convenient operation due to the synchronous feeding structure.
4. Distance of tool knife can be adjustable, as the screw thread connection easy working for tools.
5. Single combination tool with more points makes the strengthen corner connection of thermal break window and door.
6. Improved design of working table, avoid quality problem when corner cannot keep flat.
7. Inner positioning head can be adjusted in vertical.
8. Hydraulic device powder is lager.
Technical Parameters:
Power supply: 380V50Hz, three-phase five-wire
Motor power: 1.5Kw
Operation air pressure: 0.5~0.8MPa
Air consumption: 0.02m³min
Working pressure: 20Mpa
Fuel tank volume: 40L
Combining pressure: 12Mpa
Combining height: 85mm
Cylinder stroke: 85mm
Main positioning piece adjustment range: 54mm
Dimension: 1850mmx1680mmx1210mm (L*W*H)
Weight: 450Kg.
