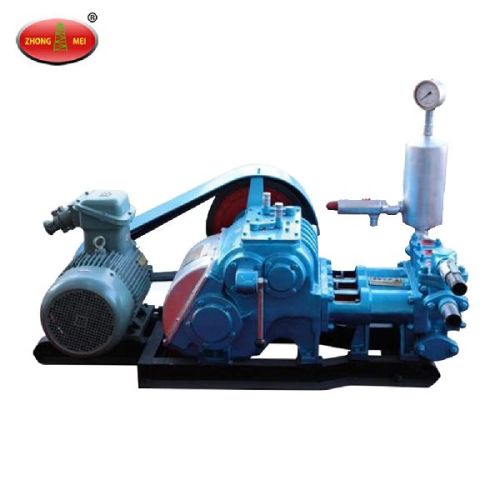

Hydraulic Horizontal Double Acting Triplex Mud Pump

Introduction of BW160 Hydraulic Horizontal Double Acting Triplex Mud Pump BW160 Hydraulic Horizontal Double Acting Triplex Mud Pump is a horizontal single-cylinder double-acting reciprocating piston pump, the pump head is equipped with four 40mm steel ball valve, thereby increasing the pressure. It is mainly used to provide flushing solution in blasting hole in geophysical prospecting. It can also be used to supply flushing liquid into well in bedrock drilling of engineering geological drilling rig. The pump has the characteristics of small volume, light weight and durability, and is more suitable for geological exploration. Main Parameter of BW160 Hydraulic Horizontal Double Acting Triplex Mud Pump Pump Type Horizontal Type of action Double Acting cylinders 1 Cylinder diameter (mm) 95 Stroke (mm) 85 Number of reciprocations (times minute) 165 Displacement (liters min) 160 Working pressure (MPa) 1.6 Transmission shaft speed (r min) 951 V - belt pulley diameter (mm) 270 V-belt pulley type and slot number B-type × 3 slot Transmission power (kW) 7.5 Diameter of suction pipe (mm) ø45 Drain pipe diameter (mm) ø38 Overall dimensions (L* W* H) (mm) 1110* 800*950 Weight (not including power machine) (kg) 136 Motor Y132M-4 Power  7.5KW     Speed 1440r min Diesel Engine R180 Power  5.67KW             Diesel Engine Speed 2600r min   Pictures of BW160 Hydraulic Horizontal Double.
