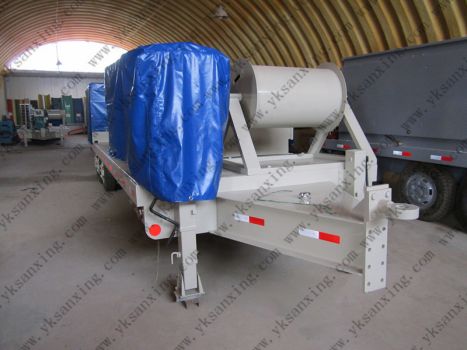

Hydraulic K Span Arch Sheet Roll Forming Machine (SX-1000-610)

Our outstanding Hydraulic K Span Arch Sheet Roll Forming Machine (SX-1000-610) bends and cuts steel up to 1000mm width. Established in 1992, Sanxing is an ISO 9001-2000 certified Kspan arch steel roof machine manufacturer in China.
More about Hydraulic K Span Arch Sheet Roll Forming Machine : This machine helps in construction alongside smooth operation and phenomenal outcome. Our product can be used to build retail stores, warehouses, barns, sheds, grain storage, sports arenas, aircraft hangars and more.

Main Technical Specifications :

• Length : Approx. 10.3 m
• Width : Approx. 2.25 m
• Height : Approx. 2.30 m
• Weight : Approx. 9000kg
• Axle : Three axles, six tyres
• Wheel/tires : Standard
• Towing : adjustable draw bar height from 80mm-160mm with 80mm round hitch.
• Lighting System : Easily adaptable lighting
• Drive System : All hydraulic
• Fuel tank capacity : 68 liters
• Construction : All steel and burnished aluminum construction, precision forming rollers with hard chrome plating.
• De-coiling Device : 508 mm inside diameter, 5000kg capacity
• Plant : Premium urethane enamel over epoxy primer (white) with buyers' markings on top and side covers
• Panel forming speed : Approx. 18 meters/min
• Curving Speed : Approx. 15 meters/min
• Seaming Speed : Approx. 6 meters/min
• Tables four legs, with rollers, stand separately
• Minimum Radius : 3.65 meters
• Steel Coil Capacity : 1.2 mm nominal ASTM 653 Grade 50, 1.5 mm maximum thickness, 0.80 mm minimum thickness
• Maximum Building Size : 38 meters wide, widths are calculated using liberal code parameters from the International Building Code


Founded in 1992, Sanxing Machinery is an ISO9001-2000 certified Kspan arch steel roof machine manufacturer in China. Welcome to contact us for further information about our steel construction machines.
