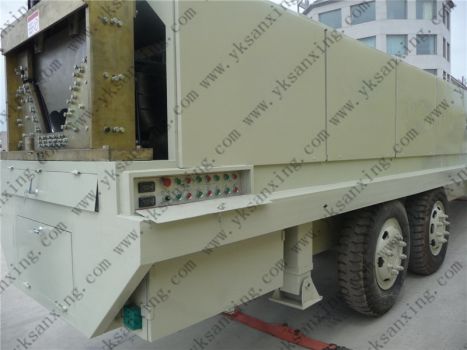

Hydraulic K Span Arch Sheet Roll Forming Machine (SX-1220-800)

Do you possess a Hydraulic K Span Arch Sheet Roll Forming Machine that works 12 m per minute on straight steel sheets, forming, bending and cutting the steel with accuracy? We present to you Sanxing’s best Hydraulic K Span Arch Sheet Roll Forming Machine (SX-1220-800) which comes with 12 wheels and 3 axles and build metal constructions like storage, garages, hangers and much more.

More about Hydraulic K Span Arch Sheet Roll Forming Machine (SX-1220-800) : With more than two decades of experience, we offer this high-quality and cost-effective insulation painting machines, the crucial building machine, and the roll forming machine customized to user benefit.

Main Technical Specifications :

• Length : Approx. 10.3 m
• Width : Approx. 2.25 m
• Height : Approx. 2.30 m
• Weight : Approx. 13000kg
• Axle : Three axles, six tyres
• Wheel/tires : Standard
• Towing:adjustable draw bar height from 80mm-160mm with 80mm round hitch.
• Lighting System : Easily adaptable lighting
• Drive System : All hydraulic
• Fuel tank capacity : 68 liters
• Construction : All steel and burnished aluminum construction, precision forming rollers with hard chrome plating.
• De-coiling Device : 508 mm inside diameter, 5000kg capacity
• Plant : Premium urethane enamel over epoxy primer (white) with buyers' markings on top and side covers
• Panel forming speed : Approx. 18 meters/min
• Curving Speed : Approx. 15 meters/min
• Seaming Speed : Approx. 6 meters/min
• Tables four legs, with rollers, stand separately
• Minimum Radius : 3.65 meters
• Steel Coil Capacity : 1.2 mm nominal ASTM 653 Grade 50, 1.5 mm maximum thickness, 0.80 mm minimum thickness
• Maximum Building Size : 42 meters wide, widths are calculated using liberal code parameters from the International Building Code


As a Kspan arch steel roof panel machine with nearly 20 years experience,we at Sanxing Machinery produce high-quality and cost-effective SABM Kspan arch steel roof machine,super ultimate building machine roll forming machine and insulation painting machines.For any inquiry,please feel free to contact us.
