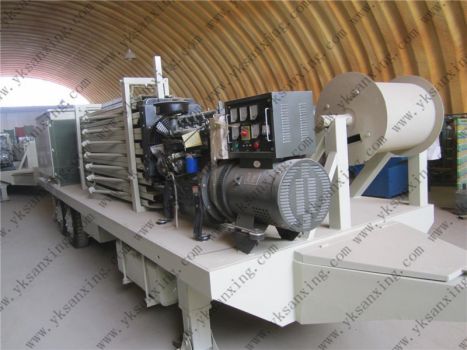

Hydraulic K Span Arch Sheet Roll Forming Machine(SX-914-650)

Sanxing, a manufacturer, supplier and exporter of Hydraulic K Span Arch Sheet Roll Forming Machines forges top class structural 45# steel to manufacture their rollers. Hydraulic K Span Arch Sheet Roll Forming Machine (SX-914-650) reaches 13-15 steps and can be used to construct buildings, workshops, highways, warehouses and more.
More about Hydraulic K Span Arch Sheet Roll Forming Machine (SX-914-650) : The machine operates with 650 mm width and at 15 meters per minute sheets.

Main Technical Specifications :

• Length : Approx. 10.3 m
• Width : Approx. 2.25 m
• Height : Approx. 2.30 m
• Weight : Approx. 13000kg
• Axle : Three axles, six tyres
• Wheel/tires : Standard
• Towing : adjustable draw bar height from 80mm-160mm with 80mm round hitch.
• Lighting System : Easily adaptable lighting
• Drive System : All hydraulic
• Fuel tank capacity : 68 liters
• Construction : All steel and burnished aluminum construction, precision forming rollers with hard chrome plating.
• De-coiling Device : 508 mm inside diameter, 5000kg capacity
• Plant : Premium urethane enamel over epoxy primer (white) with buyers' markings on top and side covers
• Panel forming speed : Approx. 18 meters/min
• Curving Speed : Approx. 15 meters/min
• Seaming Speed : Approx. 6 meters/min
• Tables four legs, with rollers, stand separately
• Minimum Radius : 3.65 meters
• Steel Coil Capacity : 1.2 mm nominal ASTM 653 Grade 50, 1.5 mm maximum thickness, 0.80 mm minimum thickness
• Maximum Building Size : 25 meters wide, widths are calculated using liberal code parameters from the International Building Code


As a Kspan arch steel roof machine with nearly 20years experience, we at Sanxing Machinery produce high-quality and cost-effective SABM Kspan arch steel roof machine, super ultimate building machine roll forming machine and insulation painting machines. For any inquiry, please feel free to contact us.
