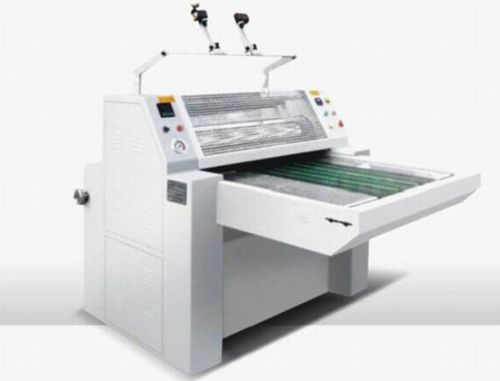

Hydraulic Laminating Machine, Brand Name : HL

We offer ce-hydraulic laminating machine.
Main features:
yfmc series of hydraulic laminating machine has advanced design, compact structure, easy operation. It is of high working pressure, quick heating speed, fast speed, low noise, stable working.
It changes the disadvantage of traditional laminating machine that the snowflakes and spots appeared in the brunet prints laminating machine, reduces the attrition rate of the product, improves the quality of the product, and most of all, greatly improves the working efficiency.
It is an essential post press equipment based on the material of bopp thermal lamination film, which can be widely used in the film covering one side of the finished goods such as window packing box, cookie tin, books, blue print, advertisement, and so on. The printing after lamination has a character of waterproof, durable in use, clear pattern and strong stereoperception.
model: yfmc-720
paper size: 620mm
temperature of laminating: ≤130ºc
power of motor: 1.1kw
total power: 7.5kw
weight of machine: 470kg
overall dimensions: 1900*1300*1600mm
model: yfmc-920
paper size: 820mm
temperature of laminating: ≤130ºc
power of motor: 1.5kw
total power: 7.8kw
weight of machine: 520kg
overall dimensions: 1900*1500*1600mm
model: yfmc-1200
paper size: 1100mm
temperature of laminating: ≤130ºc
power of motor: 2.2kw
total power: 10kw
weight of machine: 600kg
overall dimensions: 1900*1700*1600mm.
