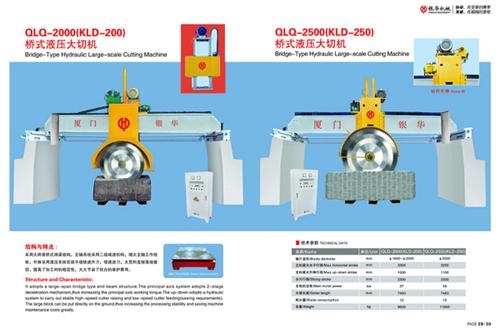

Hydraulic Large Scale Cutting Machine

We are offering bridge-type hydraulic large scale cutting machine.
applications: this is one of the series of stone processing machinery products designed and manufactured by our factory. It adopts a wide-span bridge-type end beam structure. It is widely used to cut granite and marble large-scale material. The stone raw material is on the floor, improving the processing stability and saving the worktable maintenance cost greatly. And it makes a feature of reasonable structure, precise processing, stable performance and flexible rotation, high automation, easy installation and maintenance. It is a preferred machine ideal for granite and marble processing. Features of qlq-200025003000(kld-200250300) bridge-type large-scale cutting machine it adopts a large-span bridge type end beam structure. The principal axis system adopts 2-stage deceleration mechanism, thus increasing the principal axis working torque. The up-down adopts a hydraulic system to carry out stable high-speed cutter raising and low-speed cutter feeding (sawing requirements). The large block can be put directly on the ground, thus increasing the processing stability and saving machine maintenance costs greatly. Usually, qlq-2000 is by single hydraulic-cylinder up-down. Qlq-25003000 has two kinds of up-down form. Double leadscrew and double hydraulic. Specifications name unit qlq-2000 (kld–200) qlq-2200 (kld–220) qlq-3000 (kld–300) blade diameter mm ф1600-ф2000 ф2500 ф3000 max. Horizontal stroke mm 3300 3200 3200 max .up-down stoke mm 1000 1100 1300 slicing stroke mm 2300 2300 2300 main motor power kw 37 45 45 girder length mm 7300 7300 8500 water consumption m3h 12 12 15 weight kg 9000 11000 12000.
