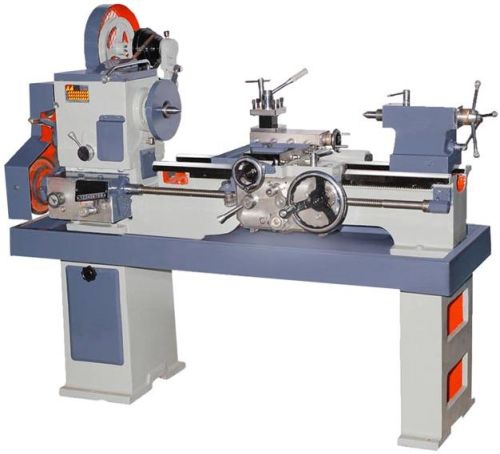

Contact SupplierShah Machinery has carved a niche for itself in the domestic markets as a Manufacturer and Supplier of Light Duty Lathe Machine. Our Light Duty Lathe Machine is precision engineered, thus renders high productivity.
Standard Accessories : Chuck Plate, Gear Set, Center Adaptor, Dead Center, Tool Post
Extra Accessories : True Chuck, Dog Chuck, Electric Motor, Norton Gear Box, Follow Rest, Steady Rest, Face Plate
Model | SM 165 | SM 175 |
---|---|---|
Height Of Centre (mm) | 165 mm | 175 |
Width of bed (mm) | 238 mm | 238 |
Max. Swing over bed (mm) | 330 mm | 350 |
Max. Swing over Slide (mm) | 180 mm | 200 |
Spindle Bore | 40 mm | 40 |
Spindle Nose | 8 TPI | 8 TPI |
Spindle Speed 6 (R.P.M.) | 30 - 825 | 30 - 825 |
Cross Slide Travel | 225 mm | 225 mm |
Lead screw TPI | 4 TPI | 4 TPI |
Tail Stock Sleeve | MT-3 | MT-3 |
Power Required | 1 hp | 1 hp |
Length | A.B.C. |
---|---|
4.6" | 650 |
5.3" | 875 |
6" | 1050 |
