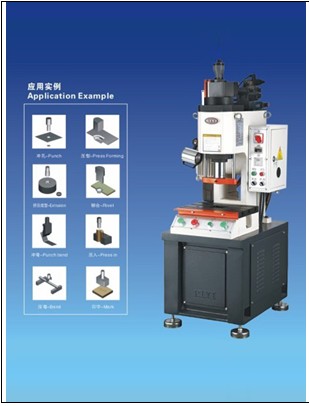

Hydraulic Machine - Fby-CP Series

Hydraylic press with filling valve
Product feature:
1.The C-body design, use small space and easy to operate.
2. Whole body cast, high rigid and stable performance.
3. With a filling valve, have a high speed.
4. Key and Foot Switch two cycle start modes.
5. Safety designed, using both hands to operate, with emergency stop button and jog up and down function.
6. Downward movement with the fast and feeding speed�the fast movement improve work efficiency�feeding speeds can be adjusted to protect the mold and improve product quality.
7.Widely used in parts of the press forming, stretching, bending, punching, stamping, shaft alignment and press-fit, etc.
8.Infrared protection can be configured (Optional).
Technical Parameters
Theoretical output pressure 100KN(10t)
Rated oil pressure 11Mpa
Max stroke 200mm
Max Opening Height 380mm
Throat Depth 200mm
Fast-forward speed 200mm/s
Feeding speed 10~70mm/s
Return speed 150mm/s
The size of the working table 500 X 400mm
The height of the working table 780mm
Size of the mold mounting hole Φ32mm
Power of motor 3.7kw
Power(3ΦAC,50Hz)380V
Weight 990kg
Another important for us,our company can design and manufacturing all kinds of non-standard machine or standard depending on what you want independtly.
