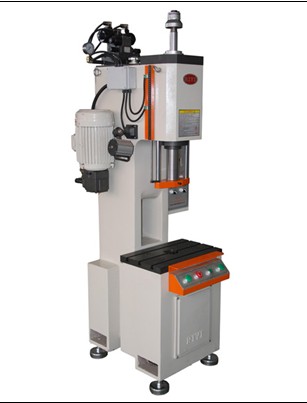

Hydraulic Machine - Fby-k6.3l Series

Product feature:
1.The C-body design, use of small space and easy to operate.
2. Whole body cast, rigid, and stable performance.
3. Rod mechanical limit, under pressure adjustable stroke, positioning accuracy 0.02mm.
4. Key and Foot Switch two cycle start modes. Pressure Speed and time can be adjusted Arbitrarily.
5. Safety designed, using both hands to operate, with emergency stop button and jog up and down function.
6. Downward movement with the Fast and Feeding speed the fast forward improve work efficiency feeding speeds can be adjusted to protect the mold, improve product quality.
7.Widely used in parts of the press forming, stretching, bending, punching, stamping, shaft alignment and press-fit etc.
8. Infrared protection can be configured (Optional).
Technical Parameters
Theoretical output pressure 63KN(6.3t)
Rated oil pressure 12Mpa
Max stroke 300mm
Max Opening Height 400mm
Thoat depth 160mm
Fast-forward speed 80mm/s
Feeding speed 10~80mm/s
Return speed 90mm/s
The size of the working table 520 X 310mm
The height of the working table 640mm
Size of the mold mounting hole Φ22mm
Power of motor 2.2kw
Power(3ΦAC,50Hz)380V
Weight 850kg.
