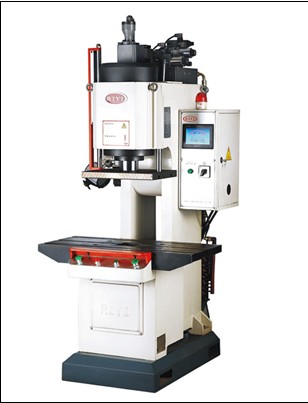

Hydraulic Machine - FBY-KC Series

Product feature:
1.The C-body design, whole body cast, high rigid.
2. With a filling valve, have a high speed.
3. Key and Foot Switch two cycle start modes.
4. With PLC control, easy programming process, positioning accuracy and high precision.
5. Safety designed, using both hands to operate, with emergency stop button and jog up and down function.
6. Widely used in parts of the press forming, stretching, bending, punching, stamping, shaft alignment and press-fit etc.
7. Infrared protection can be configured (Optional).
Technical Parameters
Theoretical output pressure 200KN(20t)
Rated oil pressure 13Mpa
Max stroke 250mm
Max Opening Height 460mm
Thoat depth 230mm
Fast-forward speed 180mm/s
Feeding speed 40mm/s
Return speed 120mm/s
The size of the working table 500 X 450mm
The height of the working table 620(770)mm
Size of the mold mounting hole Φ35mm
Power of motor 4.5kw
Power(3ΦAC,50Hz)380V
Weight 1500kg.
