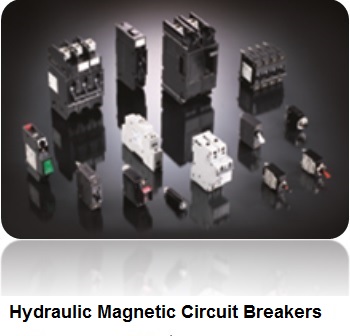

Hydraulic Magnetic

A hydraulic magnetic circuit breaker, is a mechanical circuit protection device. The main components are a coil, an iron core sealed in a tube filled with hydraulic fluid, a spring loaded actuator, and two electrical contacts,. When excessive current from a current overload, runs through the device, the electromagnetic field in the coil is increased which moves the iron core through the tube and causes the spring loaded actuator to trip, separating the contacts and opening the circuit. Opening speed is determined by the viscosity or thickness of the hydraulic fluid.
