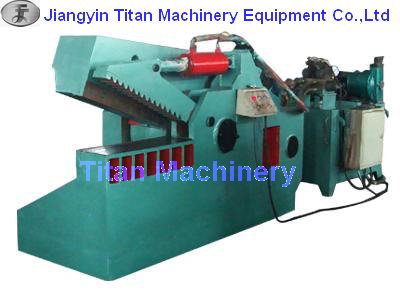

Hydraulic Metal Alligator Shear

we are offering hydraulic metal alligator shear.
1, Product listing�
Hydraulic waste metal shear Q43-630
2, Application
Q43 series hydraulic alligator shear is mainly used for scrap metal and materials recycling and processing, cold shearing of fracture surface of various metals, like round steel, square steel etc.
3, Features
a, Fluid drive endows Q43 series alligator shear with small size, light weight, low noise, high efficiency and many other advantages comparing to traditional mechanical drive.
b, Q43 series hydraulic alligator shear provides option of auto and manual operation system, and a handy operating panel makes it possible to start, pause and stop the machine at any position and any time. And you can adjust the cutter size according to the materials so to make your work more efficient.
c, Q43 hydraulic alligator shear is also equipped with a speed-switch system which can automatically convert the speed while the cutting materials change between the large and the small size with no extra energy consumption of motor and pump.
d, Q43 hydraulic alligator shear is widely used in different fields including scrap metal recycling industry and steel factory offering you qualified products.
4, Technical parameter:
Max shear force: 630 KN
Machine size: 1700*580*1380 mm
Shearing frequency (permin): 8-12 timesmin
Max blade opening (mm): 320 mm
Balde length: 600 mm
Operation: ManualAutomatic
Power: 7.5 KW
Nominal pressure: 20 Mpa
Max sheared material size
Angle steel: 40*40*4 mm (3 pcs)
I-steel: 100*68*4.5 mm
Channel steel: 120*53*5.5 mm
Steel plate: 14*200 mm
Square steel: 30*30 mm
Round steel: Φ 35 mm
