Hydraulic Milling Machine, Brand Name : LIAN JENG

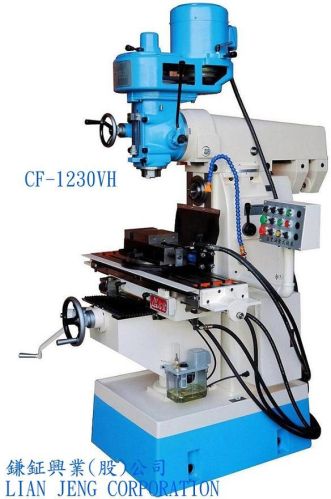

We are offering hydraulic milling machine models (cf-1230vh)
table
working surface(length × width) 1000×230mm
table travel(xyz) 500×230×385mm
t-slots 16mm×3
vertical spindle
spindle nose n.t.#40
spindle speed(8 steps)r.p.m 210,420,690,980,1380,1720,1960,3440(60hz)
170,340,570,810,1140,1430,1620,2860(50hz)
distance from spindle end to table top 50-525mm
distance from spindle center to column 150-450mm
vertical travel of quill surface 125mm
swiveling angle of head(right & left) 90
cross travel of ram 230mm
horizontal rotation angle or ram 360
horizontal spindle
spindle nose n.t.#40
spindle speed(6 steps)r.p.m 50,120,210,320,470,1180(60hz)
40,100,170,260,390,980(50hz)
distance from spindle center to table top 0-470mm
distance from spindle center to ram bottom 115mm
motors
for vertical spindle 1.5kw(2hp)-48p
for horizontal spindle 1.5kw(2hp)-4p
for table feed 1.5kw(2hp)-4p
for cutting fluid pump 0.1kw(18hp)-4p
size of machine
net weight 1,200kg
dimensions of packing case 1150×1205×1700mm.
