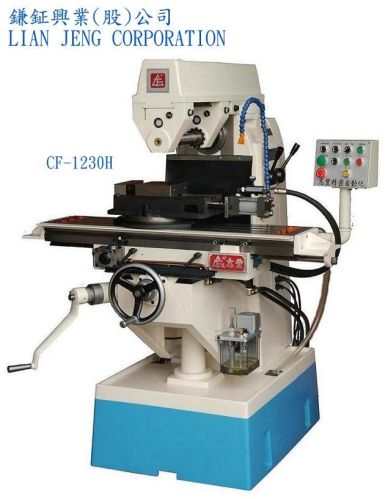

Hydraulic Milling Machine

We are offering hydraulic milling machine.
Models (cf-1230h)
table
working surface(length × width) 1000×230mm
table travel(xyz) 500×230×385mm
t-slots 16mm×3
horizontal spindle
spindle nose n.t.#40
spindle speed(6 steps)r.p.m 50,120,210,320,470,1180(60hz)
40,100,170,260,390,980(50hz)
distance from spindle center to table top 0-470mm
distance from spindle center to ram bootom 115mm
motors
for horizontal spindle 1.5kw(2hp)-4p
for table feed 1.5kw(2hp)-4p
for cutting fluid pump 0.1kw(18hp)-4p
size of machine
net weight 1,000kg
dimensions of packing case 1150×1150×1670mm
