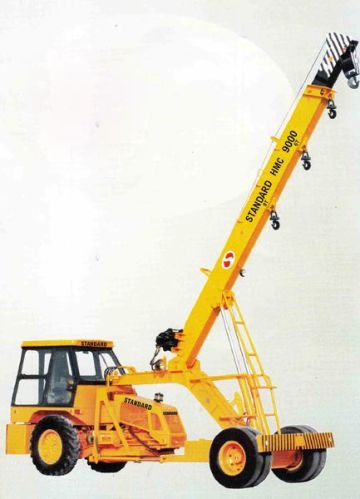

Hydraulic Mobile Crane (9000)

Supply TypeManufacturer, Supplier, Retailer
Preferred Buyer Location All over the world

Having sturdy make and reliable operations, the Hydraulic Mobile Crane (9000), which we offer, is manufactured using premium materials and components. Known for its low maintenance cost and long life, this Hydraulic Mobile Crane is priced economically. We are a reliable Manufacturer and Supplier of Hydraulic Mobile Crane from Barnala-Punjab. Optional Equipment (On Extra Cost) Fly JibSlotted BoomAC Cabin3rd HookLift Jack GuardMain Frame SafetyHeavy Weight CounterHeavy BonnetWater Cooled Diesel Engine12V MeterSolid CabinBoom SafetySolid Boom

View More Details

Send Enquiry

Product Details

Technical Specification

Lifting Capacity (Free on Wheel)	9 Tonnes
Engine	SE-450 Standard, 4 Cylinder, direct injection, Water Cooled Diesel Engine.
Air Cleaner	Dry Tape
Rated Power	50 HP @ 2200 RPM
Transmission	Sliding Mesh, Spur teeth with 10 forward, 2 reverse speeds & hi-low range selector
Clutch	Single plate, Heavy Duty & Dry friction with spring loaded pressure plate
Brake	Pneumatically assisted hydraulic brakes front & rear brakes are actuated through a single pedal
Max Speed	28 KMPH
Hydraulic System	Intra vane type main pump Four spool control valve Two double acting lift cylinder Two double acting steering cylinders and one double acting extension cylinder
Steering	Hydraulically operated with 55^o articulation on either side and turning radius of 5.5 m (approx.) on outer rear wheels
Electrical System	12 V, Negative earth, single battery
Telescoping Boom	Two part heavy duty boom with hydraulic operated single extension of 1800 mm stroke.
Derricking	Through two double acting jacks with rod Dia 63 mm
Max. Boom Height	27' with single extension
Main Frame	Extra heavy in single radius
Chassis	Heavy with extra Re-inforced
Telescoping Time	8 Second
Boom Lifting Time	0^o To 60^o 20 Second
Hoist	Winch rope dia 13 mm driven by hydraulic motor with 4 falls
Hoist Speed	24 Mtrs. / Min. (Line Speed)
Tyres Front Rear	10.00 x 20 - 16 PR (Std.) / 11.00 x 20 - 16 PR (Opt.) (Four Nos.) 13.00 x 24 - 18PR (Std.) /14.00 x 25 - 20 PR (Opt.) (Two Nos.)
Fluid Capacity Engine Fuel Tank Hyd. Tank Transmission	(in litres) 12 ½ 45 110 47
Standard Equipment	All Weather Cabin Lift Cylinder Guard Turn & Reverse Lamp Front Bumper Reflector Rear View Mirror
Safety	Audio overloaded indication House Failure Protection Safety valve on Lift Cylinder Boom Pin Failure Protection Tie Bolt Pin Failure Protection
Unladen Weight	8460 Kg. (Approximately)
