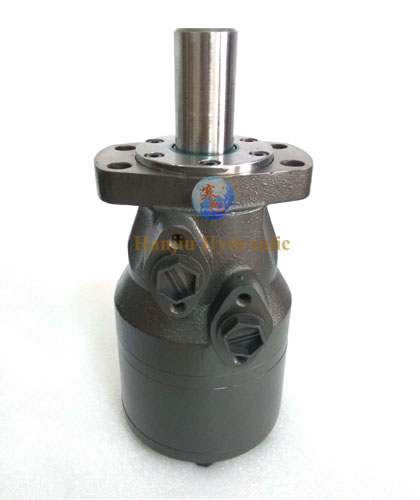

Hydraulic Motors BM Series

Hydraulic orbit motor bmh:
*advanced manufacturing devices for the gerolor gear set, which use low pressure of start-up,provide smooth, reliable operation and high efficiency.
*shaft seal can bear high pressure of back and the motor can be used in parallel or series.
*special design in the driver-linker and prolong operating life.
*special design for distribution system can meet the requirement of low noise of unit.
*compact volume and easy installation
omh hydraulic motor main specifiction:
type
bmh
200
bmh
250
bmh
315
bmh
400
bmh
500
displacement
(ccrev)
203.2 255.9 316.5 406.4 489.2
max torque
(n.m)
cont 510 621 740 850 830
int 439 348 282 220 184
max pressure
(mpa)
cont 17.5 17.5 17.5 15.5 12.5
int 20 20 20 19 16
max speed rate
(rpm)
cont 366 290 236 183 155
int 439 348 282 220 184
max flow
(lmin)
cont 75 75 75 75 75
int 90 90 90 90 90
weight(kg)
10.5 11 11.5 12.3 13.0
substitute reference substance
motor cross reference table
hanjiu
hydraulic m+s
hydraulic eaton
char lynn danfoss ross
trw white
cross parker sam
brevini bosch
recroth
bmm mm mlhk j series omm
bgm mgx
bmpbm1 mp hp h series omp dh mf mg wp rs tc te tb bg mgp gxp
bmrbm2 mr hr mlhrw,rw s,t series w series omr ds omew mb wr re tf br mgr gmr
bmhbm4 mh mlhh hw hwf
omh me re tg
bmsbm5 ms msy mlhs 2000 series oms me re tg hpr mgs gms
bmtbm6 mt mlht mtm 6000 series omt tmt mj
ht mgt,gmt
bmv mv mlhv 10000 series omv
mgv gmv
hydraulic orbit motor applications:
brush cutters
mower
haveresting equipment
forestry equipment
turf equipment
