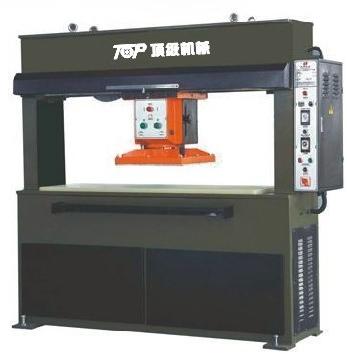

Hydraulic Moving Head Cutting Press

We are offering hydraulic moving head cutting press.
1. Gantry frame structure is adopted, with high intensity and without deformation.
2. the cutting head can automatically move horizontally, with excellent operating visual field
and safe and reliable operation.
3. the lifting position of pressing board can be freely set to reduce idle travel and enhance
work efficiency.
4. The movement of cutting head is controlled by automatic speed variation to realize flexible
movement with high speed and accurate positioning and without impact.
5. differential oil way is adopted to allow rapid and convenient cutting.
6. products of special specifications can be customized.
model top-a30t
pressure 30t
dimension 2330*1000*1900mm
cutting area 610*1600mm
voltage 380v
power 4kw
stock 40-160mm
n.w 2300kg
