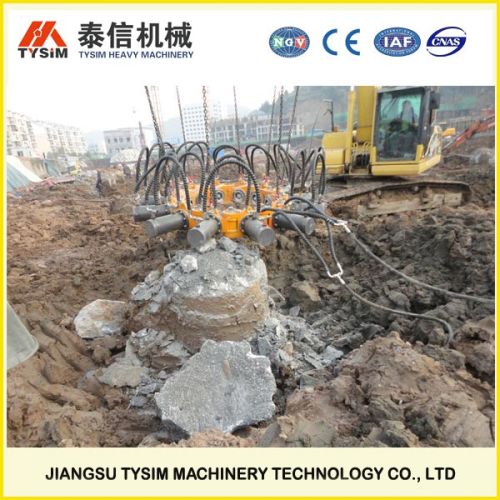

Hydraulic Pile Breaker

We are offering hydraulic pile breaker . Can be installed on a large variety of equipment, realizing the versatility and economy.
Simply operated with less staff, reduce the construction cost.
Crushing the piles wholly, reduce the consumption of energy.
Using adjustable chain, the pile breaker can apply to operations in different terrains.
Full hydraulic drive, low noise operation.
Quick assembled, more convenient to transport and more efficiently.
Make money for the user of hydraulic pile breaker.
Pile diameter φ600~φ1800mm
max.rod pressure 600kn
crowd stroke 180mm
max. Crowd pressure 30mpa
max. Cylinder required 30lmin
quantity8h 488h
max. Single cutting height ≤300mm
matched machinery tonnage ≥35t
single module weight 230kg
single module size 696×566×350 mm
operating size φ3316×φ4000 mm
overall weight 4.5t
kp380a construction's parameters
module numbers the diameter range platform weight weight height of single crush pile
8 φ600 mm ≥20 t 2200 kg ≤400 mm
9 φ700 mm ≥20 t 2430 kg ≤400 mm
10 φ800~φ900 mm ≥25 t 2660 kg ≤400 mm
11 φ1000 mm ≥25 t 2890 kg ≤350 mm
12 φ1100 mm ≥25 t 3120 kg ≤350 mm
13 φ1200 mm ≥28 t 3350 kg ≤350 mm
14 φ1300~φ1400 mm ≥28 t 3580 kg ≤350 mm
15 φ1500 mm ≥30 t 3810 kg ≤350 mm
16 φ1600 mm ≥30 t 4040 kg ≤300 mm
17 φ1700 mm ≥35 t 4270 kg ≤300 mm
18 φ1800 mm ≥35 t 4500 kg ≤300 mm
