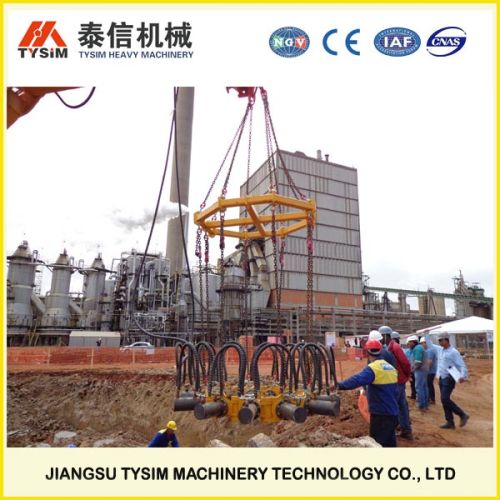

Hydraulic Pile Cutter

We are offering hydraulic pile cutter. Pile breaker cutter can be installed on a large variety of equipment, realizing the versatility and economy.
Simply operated with less staff, reduce the construction cost.
Crushing the piles wholly, reduce the consumption of energy.
Full hydraulic drive, low noise operation.
Quick assembled, more convenient to transport and more efficiently.
Modular design effectively improves the whole life and the serviceability.
pile diameter φ300~φ1050mm
max.rod pressure 280kn
crowd stroke 135mm
max. Crowd pressure 30mpa
max. Cylinder required 20lmin
quantity8h 608h
max. Single cutting height ≤400mm
matched machinery tonnage ≥20t
single module weight 100kg
single module size 645×444×316 mm
operating size φ2098×φ4840 mm
overall weight 1.7t
kp315a construction's parameters
module numbers the diameter range platform weight weight height of single crush pile
6 φ300~φ350 mm ≥12 t 1000 kg ≤450 mm
7 φ350~φ450 mm ≥12 t 1100 kg ≤450 mm
8 φ450~φ550 mm ≥16 t 1200 kg ≤450 mm
9 φ550~φ650 mm ≥16 t 1300 kg ≤400 mm
10 φ650~φ760 mm ≥20 t 1400 kg ≤400 mm
11 φ760~φ860 mm ≥20 t 1500 kg ≤400 mm
12 φ860~φ960 mm ≥20 t 1600 kg ≤400 mm
13 φ960~φ1050 mm ≥20 t 1700 kg ≤400 mm
jiangsu tysim machinery technology co., ltd. Is specialized in the r&d, manufacturing and sales of piling machinery and auxiliary parts. The products cover rotary drilling rig, full hydraulic pile breakers, mechanical diaphragm wall grab, hydraulic auger drill and so on.
