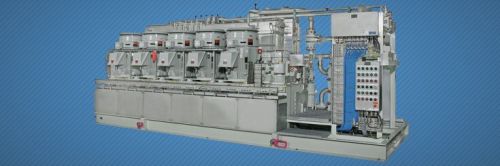

Hydraulic Power Units

Cameron hydraulic power units (HPUs) deliver steady hydraulic pressure and flow to all hydraulic consumers. The design of the HPU focuses on providing easy operation and maintenance. It also features remote supply-pressure readout, an integrated inspection hatch, a local tank leveltemperature readout, and is fabricated with top-quality components and materials. Cameron HPUs have an onboard oil cooling system, which includes a titanium plate cooler for seawater service, local pressure gauges and shut-off valves for easy maintenance of the cooler.
Specifications
Stainless steel hydraulic fluid tank
HPU skid supplied with vibration dampeners
Continuous oil circulation system
Offline fine-filter system
Duplex main return and drain filter
Individual pressure filter for main pumps
Distribution manifold in the supply line
Low and low-low level tank alarms
High and high-high fluid temperature alarms
Local operator panel provides startstop control and running indications on all motors
HPU skid equipped with four certified lifting eyes
Pressure relief valve mounted in each main supply line
Hydraulic soft start-up system
Each main motorpump unit is equipped with four vibration dampeners
Emergency stop mounted on local operator panel
Automatic shutdown with low-low level alarm
