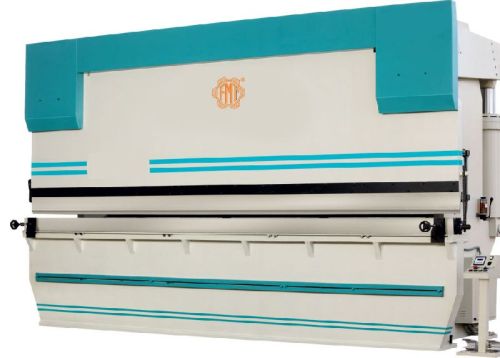

Hydraulic Press Brake

Ram travel repeatable within ±0.03mm for consistent bends for interchangeable output. Ram travels is referenced from bed to avoid side frame deflections affecting stroke accuracy.

Rugged structure from ultra tested Is 2062plates, rigidity conforming to international standards. Hydraulic, electricals of internationally reputed brands for consistent performance and reliable operation. Front operated manually back gauge front sheet supports with scale Most hydraulic parts rated for 310 bar but working pressure only 160 bar for long life, reliable operation. Ram guides of 4-piece design with replaceable liners. Pivots with permanently lubricated bearings or hardened parts lubricated by central hand pump Cylinders of ultra-tested seamless honed tubes, hard chrome-plated pistons, dual seals )Telfon ring plus set of chevron packings) for extra reliability. 3-speed bending cycles for faster output yet slow smooth bending with minimal shock loads. Movable control station with majority controls, emergency stop, up-down foot-switch controls, Inch cycle mode for set-up and one-off jobs. Single cycle modes for repeat cycles, production runs.

Main cylinders seals can be easily replaced without requiring crane of dismantling the ram. Hydraulic powder gives silent working, better safety against overload, instant stoppage-reversal of ram One set of unhanded standard punch, multi-V die Block Lifting chains system and rotation of die block when using multi-vee die block.
