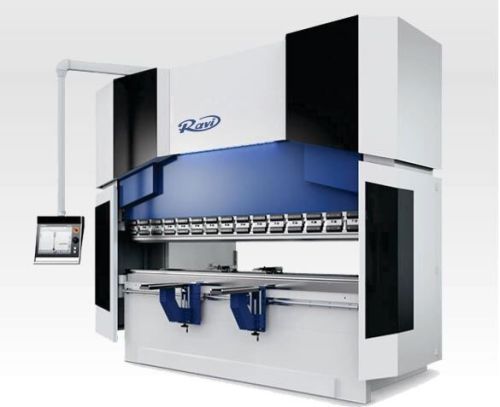

Hydraulic Press Brake

ApplicationMetal Sheets With Precision Efficiency
Number Of FlowerHydraulic Press Brakes
Country of OriginIndia
MaterialHoned Tubes,etc
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Standard Features – Accessories for basic model-» Rugged structure from ultra tested IS 2062 grade B plates rigidity conforming to international standards. » Hydraulics, electrics of....

Company Information

Member Since 12 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Standard Features – Accessories for basic model-» Rugged structure from ultra tested IS 2062 grade B plates rigidity conforming to international standards. » Hydraulics, electrics of internationally reputed brands for consistent performance and reliable operation. » Pivots with permanently lubricated bearings or hardened part lubricated by central hand pump.» Cylinders of ultra-tested seamless honed tubes, hard chrome-plated pistons. dual seals.» 3 Speed bending cycles for faster output yet slow smooth bending with minimal shock loads.» Movable control station with majority controls, emergency stop, up-down foot -switch controls.» Inch cycle mode for srt-up & one-off jobs. Single cycle modes for repeat cycles, production runs.» Hydraulic power gives silent working, better safety against overload, instant stopage-reversal ram.» One set of unhardened standard punch, multi-vee die block.» Lifting hooks for lifting and rotation of die block when using multi-vee die block.

Model	Hydraulic Press Brake Machines
RSW	Tonn age	Table length mm	Bending capacity (approx) mm		Table width mm	Clear Pass mm	Ram stroke mm	Open Height mm	Throat Depth mm	Speeds Approach Pressing Return mm/sec	Power HP	Packing Dim. (LxWxH) mm
RS214	20	1400	2×1250	3×800	125	1050	100	250	100	35-10-40	3	1700x1050x1900
RS320	30	2100	2×2000	3×1250	125	1550	100	250	200	30-7-30	3	2200x1150x1900
RS425	40	2500	2×2500	3×1500	180	2050	100	250	200	40-8-45	5	2700x1150x1900
RS515	50	1500	4×1500	5×1250	180	1050	100	250	200	40-7-42	5	1700x1150x1900
RS520	50	2100	3×2000	4×1500	180	1550	100	250	200	40-7-42	5	2200x1150x1900
RS525	50	2500	2.5×2500	3×2000	180	2050	100	250	200	40-7-42	5	2700x1150x1900
RS625	65	2500	3×2500	4×2000	180	2050	150	330	200	28-5-40	5	2700x1200x2000
RS630	65	3100	2.5×3000	3×2500	180	2550	150	330	200	28-5-40	5	3350x1200x2000
RS825	80	2500	4×2500	5×2000	180	2050	150	330	200	38-6-45	7.5	2700x1550x2300
RS830	80	3100	3×3000	4×2500	180	2550	150	330	200	38-6-45	7.5	3350x1550x2300
RS1025	100	2500	5×2500	6×2000	180	2050	150	330	200	40-6-45	10	2700x1550x2300
RS1030	100	3100	4×3000	5×2500	180	2550	150	330	200	40-6-45	10	3350x1550x2300
RS1040	100	4100	3×4000	4×3000	180	3100	150	330	200	40-6-45	10	4250x1650x2300
RS1225	125	2500	6×2500	8×2000	230	2050	150	350	300	38-5-42	15	2750x1650x2500
RS1230	125	3100	5×3000	6×2500	230	2550	150	350	300	38-5-42	15	3350x1650x2500
RS1240	125	4100	4×3300	5×3000	230	3100	150	350	300	38-5-42	15	4200x1650x2500
RS1625	160	2500	8×2500	10×2500	230	2050	150	350	300	35-6-45	20	2750x1800x2600
RS1630	160	3100	6×3000	8×2500	230	2550	150	350	300	35-6-45	20	3350x1800x2600
RS1640	160	4100	5×4000	6×3000	230	3100	150	350	300	35-6-45	20	4350x1800x2600
RS2030	200	3100	8×3000	10×2000	230	2550	200	400	300	35-7-45	25	3350x2050x2750
RS2040	200	4100	6×4000	8×3000	230	3100	200	400	300	35-7-45	25	4350x2050x2750
RS2050	200	5100	5×5000	6×4000	230	4100	200	400	300	35-7-45	25	5350x2050x2750
RS2530	250	3100	10×3000	12×2500	300	2550	200	400	300	35-6-42	30	3550x2100x2800
RS2540	250	4100	8×4000	10×3000	300	3100	200	400	300	35-6-42	30	4200x2000x2800
RS2550	250	5100	6×5000	8×4000	300	4100	200	400	300	35-6-42	30	5350x2000x2800
RS3030	300	3100	12×3000	15×2500	300	2550	200	400	300	30-6-38	30	3350x2150x2900
RS3040	300	4100	10×3500	12×3000	300	3100	200	400	300	30-6-38	30	4350x2150x2900
RS3050	300	5100	8×4600	10×3500	300	4100	200	400	300	30-6-38	30	5350x2150x2900
RS4030	400	3100	16×3000	20×2500	300	2550	250	500	350	25-5-40	40	3350x2200x3000
RS4040	400	4100	12×4000	16×3000	300	3100	250	500	350	25-5-40	40	4250x2200x3000
RS4050	400	5100	10×5000	12×4000	300	4100	250	500	350	25-5-40	40	5350x2200x3000
RS5030	500	3100	20×3000	25×2500	300	2550	250	500	350	25-5-40	50	3350x2200x3200
RS5040	500	4100	15×4000	20×3000	300	3100	250	500	350	25-5-40	50	4500x2200x3200
RS5050	500	5100	12×5000	15×4000	300	4100	250	500	350	25-5-40	50	5500x2200x3200
