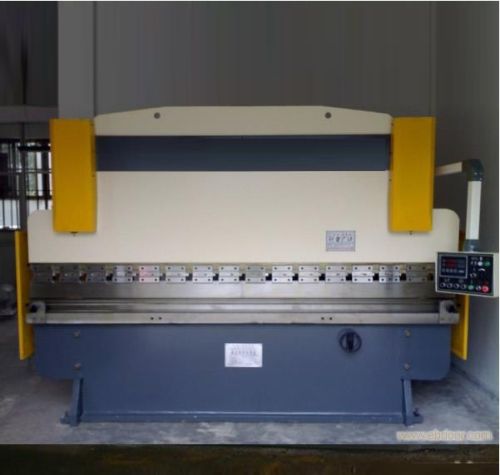

Hydraulic Press Brake Bending Machine/ Metal Sheet Bending Machine WC67Y-630*2500

One, performance and characteristics
1.Hydraulic transmission to ensure work is not caused by thickness variation, in addition to the machine has stable performance, convenient operation, low noise, reliable security features.
2.The cylinder is provided with a mechanical block, to ensure that the slider to the lower dead point of the
repeated positioning accuracy, to ensure that the production of the consistency of the bending angle.
3.The use of German technology to eliminate internal stress.
4.Overall framework by sand derusting, and spray with anti-rust paint.
In two, working slide
1.This machine adopts hydraulic electric control, sliding block can be adjusted, and have the point start, semi-automatic, automatic movements such as norm, using dynamic specification can be conveniently mold trial and adjustment.
2.Type bending machine design, double oil cylinder to work at the same time, balanced operation, convenient, safe.
3.In the bottom dead center with pressure maintaining time delay function, ensure the precision of workpiece.
4.Bending angle precision reference standard JB / T22572-1999 national standards
5.Has a slow decline in the control function, the operator can better control the workpiece.
In three, the configuration
1.Hydraulic system can realize slide falling fast, slow decline, working speed of bending, quick return and upward, downward slide in the process of emergency stop.
2.Pump adopts the axial plunger pump, can bear high pressure, low noise.
3.Seal ring selection Taiwan tripod-based company, good sealing performance, reliable work, long service life.
4.Rear stopper is regulated by a servo motor drive, the gear reducer from Taiwan imported ball screw.
5.Seal ring selection Taiwan tripod-based company or, German FIETZ, Japan VALQUA sealing, good sealing performance, reliable work.
6.By the German EMB connector, grating ruler. Using Schneider, Omron, Siemens electrical components. Bending machine slide of synchronization, die using multiple segmented short die, stitching required length, has high accuracy and good interchangeability, convenient disassembly and assembly. Connecting part is provided with a compensating mechanism, in bending sheet to compensate the work table and the sliding block of the deflection, ensure higher working accuracy. And a deflection compensation structure.
