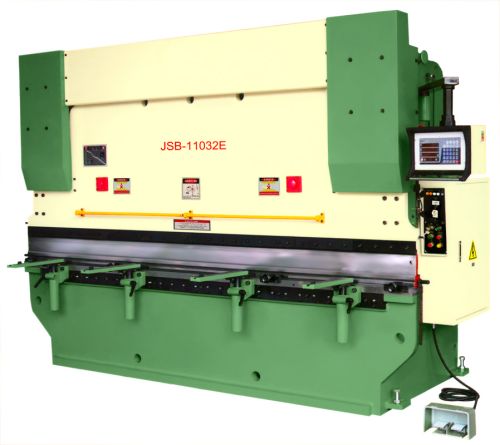

We are offering Hydraulic Press Brake.
*All steel welded construction. *Simple and easy operation control.
*Ball screw NC back gauge. *Mechanical air bend stopper.
Capacity ---------------- 3.2mm Thick x 3200 Wide (Distance between housings 2650mm).
Max. load-----------------110 ton
Ram stroke---------------200mm
Open height -------------350mm
Throat depth-------------305mm
Working speed--------- Down---------100mm/sec.
Bend------14~16mm/sec.
Rising----55~60mm/Sec.
Main Motor---------------10Hp (7.5KW)
Weight---------------------7500KG
Machine L x W x H---3800mm x 1600mm x 2350mm
Controller :SN-320----5.7 Inch Monitor + AC servo motor
Standard upper punch x 1 + bottom 4 way block die x 1
Front gauge supporting arm
Operation instruction manual.
