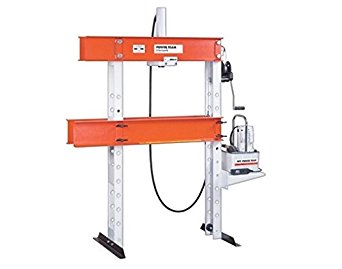

Hydraulic Press H Frame

Get Latest Price

Sold By : Integrated Systems Tools

Send Inquiry

Product Specifications

CategoryHydraulic Products
Supply TypeManufacturer, Exporter, Supplier, Retailer

Preferred Buyer From : All over the world

Product Overview

Design permits use as both H frame and C frame press

Description

OPEN THROAT® PRESSES

Cylinder can be mounted on frame extension to handle jobs which won’t fit between uprights.
Open Throat® press models are also available with remote control to enable the operator to view work from all sides with fingertip control of cylinder piston travel.
Off-center pressing loads of full capacity can be applied across entire width of frame.
Press bed height easily adjustable with winch. Bed will not drop when handle is released.
Choice of power sources for rapid cylinder advance: two-speed hydraulic hand pump, electric/hydraulic or air/hydraulic.

† Solenoid valve with 12 volt remote control hand switch.
†† Holds pressure with motor shut off. Also has an automatic dump setting. Furnished with a 3,1 meter remote motor control.
††† Typical performance based on 7 bar and 700 bar pump specifications. Actual speeds may vary under operating conditions.
‡ Pump standard with press. Other Power Team pumps can be substituted. dBA at idle and 700 bari: PE172–67/81 dBA; PE21–70 dBA measured at 0,9 meter distance, all sides.

PUMP ELECTRICAL SPECIFICATIONS

PE17 Series – 1/2 hp, 115 volt, 60 cycle, single phase.

PE21 Series – 1 hp, 115 volt, 60 cycle, single phase. Both pumps available in 230 volt, 50 cycle, add suffix “-220” to order no.

OPEN THROAT® Presses:

ORDER NUMBER	CAPACITY (TONS)	TYPE OF CYLINDER USED	STROKE (MM)	CYLINDER MODEL	SPEED (MM./MIN.)†††		TYPE PUMP	VALVE TYPE	PUMP MODEL †	WEIGHT (KG)
ORDER NUMBER	CAPACITY (TONS)	TYPE OF CYLINDER USED	STROKE (MM)	CYLINDER MODEL	ADVANCE	PRESSING	TYPE PUMP	VALVE TYPE	PUMP MODEL †	WEIGHT (KG)
SPA2514	25	Single-Acting	362	C2514C	249	30	Air	2-Way Foot	PA6	309
SPM2514	25	Single-Acting	362	C2514C	12,4 mm/stroke	0,8 mm/stroke	Hand	Load-Release	P159	314
SPE2514	25	Single-Acting	362	C2514C	1.184	84	Electric	2-Way††	PE172-E220	301
SPE2514S	25	Single-Acting	362	C2514C	1.321	102	Electric	3-Way†	PE172S-E220	344
SPE2514DS	25	Double-Acting	362	RD2514	1.321	102	Electric	4-Way†	PE174-E220	357
