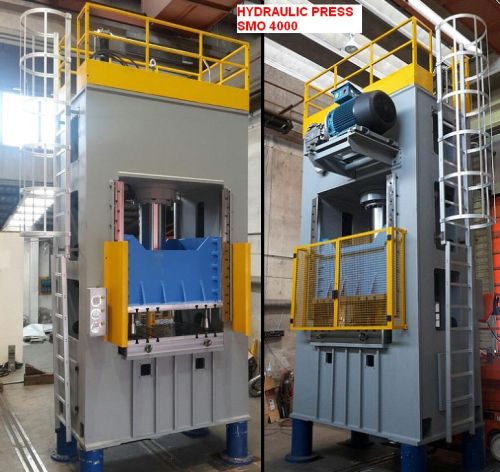

Contact SupplierHydraulic double housings press, type SMO-4000, with the following characteristics:
- Max work capacity: 400 ton.
- Table and slide dimensions: 1500 x 1500 mm.
- Max slide stroke: 800 mm.
- Max distance tableslide: 1000 mm.
- Max cushion capacity: 150 ton.
- Cushion dimensions: 1200 x 1200 mm.
- Max cushion stroke: 400 mm.
- Max ejector capacity: 2 ton.
- Max ejector stroke: 200 mm.
- Rapid advance of slide: 350 mmsec.
- Rapid return of slide: 300 mmsec.
- Work speeds maxmin: 4019 mmsec.
- Rapid return of cushion: 110 mmsec.
- Main motor power: 75 kW.
- Auxiliary motor power: 5,5 kW;
- Weight: 34.000 kg.
