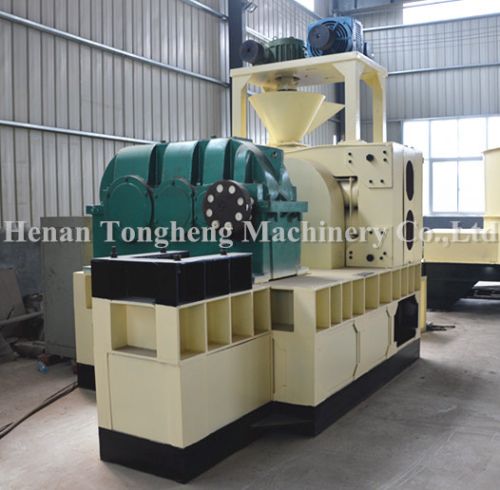

Hydraulic Pressure Briquette Machine, Certification : CE

We are offering
Double roller briquette machine is a new designed machine for dry powder making into different kinds of
balls.
Application
For double roller briquette machine, the raw material can be coal powder, charcoal powder copper powder, iron powder, mineral powder, chrome ore powder, lead zinc ore, coke powder, slag, sludge, kaolin, bauxite refractory, nonferrous metal powder, refractory matter, ceramic filter sand etc. It can be used in metallurgical, chemical industry, coal and refractories industries etc.
Advantages and Structure
Double roller briquette machine has high forming rate, low power consumption, compact structure, easy maintenance and debugging obvious advantages, It is undoubtedly an ideal key equipment for pidgeon magnesium smelting process. To meet the requirements of the materials forming, preload screw using electromagnetic speed motor, speed control mode is manual type, the user can appropriately change the speed of the press machine according to the situation of the ball forming so as to achieve the highest balling rate and maximum capacity , suppression of material through the screening machine, sieve qualified pellets for packaging, undersized return to the storage mixed with the new materials and going to be pressed again.
Technical Parameters
Model: THHB-1000
Capacity: 30-40th
Roller Width: 650mm
Roller Dia: 1000mm
Power: 75-90kw
Spindle Speed: 10rmin
Main Shaft Bearing: 2097724*4mm
Ball Size: Customized
