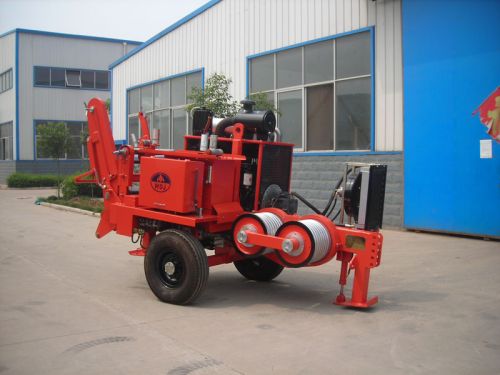

Hydraulic Puller, Brand Name : Lanxing

₹ 18.20 Lakh / 75000 75000 Set

MOQ1 Set(s)
Brand NameLanxing
Groove amount7
Max pulling speed5km/h
Hydraulic valveAtos made in Italy
Supply TypeManufacturer
Preferred Buyer Location All over the world

Company Information

Member Since 12 Years
Nature of Business Manufacturer
Year of Establishment 1989

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Brand NameLanxing
Electrical System(v) 24
Max continuous pull35KN
ReducerBonfiglioli made in Italy
Max fixed joint idameter50mm
Max reliable pulling rope dia16mm
Power/rotating speed77kw/2500rpm
Hydraulic pipeline systemManuli made in Italy
Max pulling speed5km/h
Pull meterFantinelli made in Italy
Corresponding speed2.5km/h
Corresponding pull17KN
Hydraulic meterWika made in Germany
Main hydraulic pumpRexroth made in Germany
Groove amount7
Puller groove bottom dia400mm
EngineCummins water cold
Overall dimension3200*1700*2000mm
Main hydraulic motorRexroth made in Germany
Max pulling40KN
Hydraulic valveAtos made in Italy
Main hydraulic handleRexroth made in Germany

We are offering 40kn hydraulic puller in power constrution.
Hydraulic puller introduction
1, this hydraulic puller is single bridge structure trailer.
2, the speed of the bull wheels can be varied stepless in both rotation directions. The pull can be controlled and be volume can be read on the dynamometer.
3, the max pull can be adjusted and equipped with overload protection system.
4, spring applied-hydraulic released brake acts automatically in case of hydraulic failure to ensure safety.
5, with self-loading reel winder with automatic level wind,(hand work is also ok) to ensure that the wire can be evenly wound on the pilot wire reel.
6, hydraulic front jack and surge brake for axle.(can be chosen)
7, pre-heat unit to ensure the motor can be easily started in the cold weather.(can be chosen)
