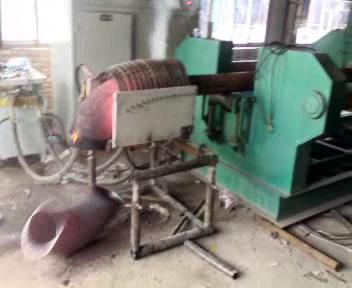

We are offering Hydraulic Pushing Machine.
The Main Technical Parameters of The Machine
1 The oil cylinder: Ф 300mm, the effective trip: 6.5m, pressure：21Mpa, 4 bars
The maximum thrust of the 4 cylinders: 600 tons; The forward speed: 0—90cm/min ,
The max backward speed: 350cm/min.
2 The pump station：
63scy-plunger pump :3 sets, 18.5KW Motor: 3 sets (the main working pump)
CB-120 gear pump: 1 set, 15KW motor: 1set (for fast forward and back)
CB-16 gear pump: 1 set,5.5KW motor: 1set (for the fork gate)
The hydraulic valve is integrated oil rout, hydraulic front and back gate. Automatic feeding.
3. The frame for the main engine: 30# channel steel, welded with 43kg steel rail
4 The panel for the main engine: welded with 50mm medium plate
5 Distribution cabinets, operation box 1 set
6 Intermediate-frequency power (power600KW 380v、220v、50Hz)
7 the max pipe can be feed each time : 2 pieces

Additional Information

Payment Terms L/C, T/T
Port of DispatchTianjin Xingang
Packaging Detailsno package for the main frame works , wood case for the small parts.
Delivery Time35 days
